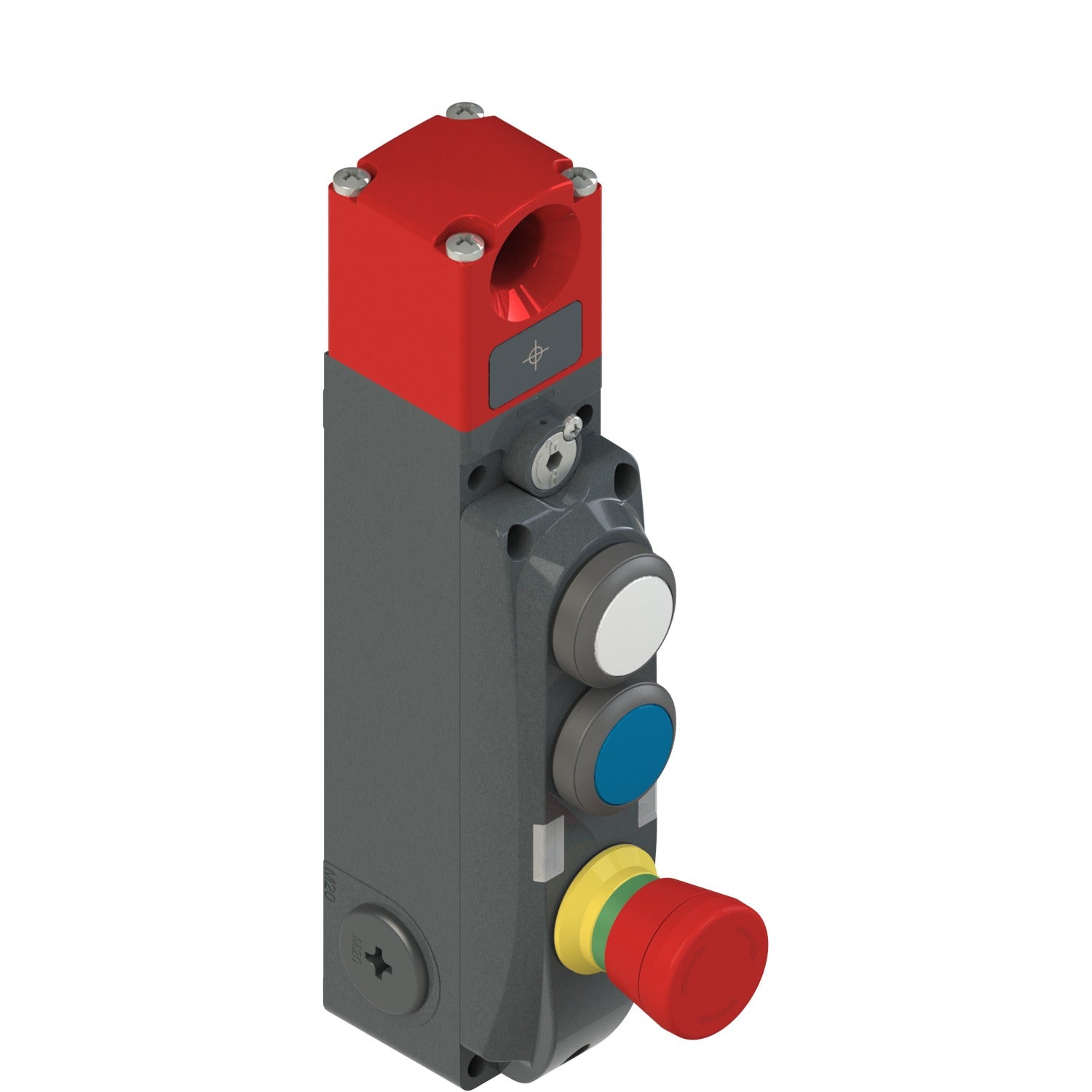

Pizzato NG 2D1D412V NG series safety switch with lock and integrated control devices

AKB000006928

Protection degree IP65 according to EN 60529
Cover, position 1 1 pushbutton white 1NO+1NC
Cover, position 2 1 pushbutton blue 1NO+1NC
Cover, position 3 1 red emergency pushbutton, turn to release, 2NC
Cover configuration 3 devices
Housing Metal housing, three threaded M20x1,5 conduit entries
Head Rotating head
Working method D working method, locked actuator with de-energized solenoid
Inputs and outputs 2 safety inputs IS1-IS2,
2 safety outputs OS1-OS2,
1 signalling output O3: actuator inserted,
1 signalling output O4: actuator locked,
I4 or IE1-IE2 inputs for solenoid activation,
1 input I3: actuator programming / reset
Safety output activation OS Activation mode 1: safety outputs active with actuator inserted and locked
Actuator Without actuator
Type of connection Without connector
