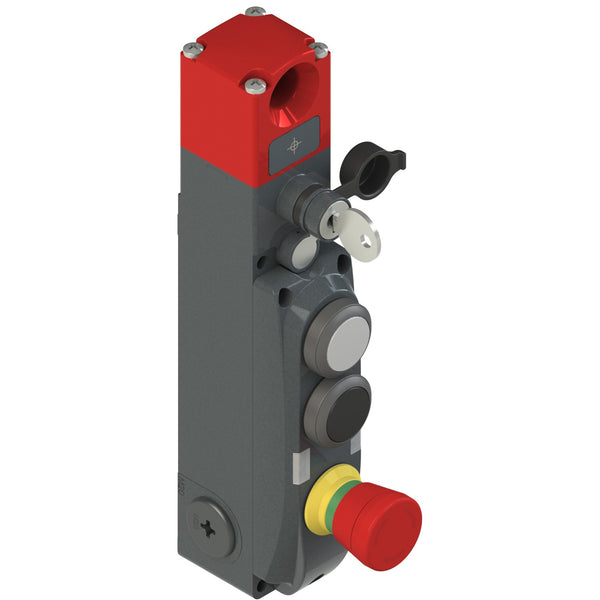

Pizzato NG 2D5D411D NG series safety switch with lock and integrated control devices

AKB000007017

Protection degree: IP65 according to EN 60529
Cover, position 1: 1 pushbutton white 1NO+1NC
Cover, position 2: 1 pushbutton black 1NO+1NC
Cover, position 3: 1 red emergency pushbutton, turn to release, 2NC
Cover configuration: 3 devices
Housing: Metal housing, three threaded M20x1,5 conduit entries
Head: Rotating head with lock auxiliary release device
Working method: D working method, locked actuator with de-energized solenoid
Inputs and outputs: 2 safety inputs IS1-IS2,
2 safety outputs OS1-OS2,
1 signalling output O3: actuator inserted,
1 signalling output O4: actuator locked,
I4 or IE1-IE2 inputs for solenoid activation,
1 input I3: actuator programming / reset
Safety output activation OS: Activation mode 1: safety outputs active with actuator inserted and locked
Actuator: Without actuator
Type of connection: Without connector
