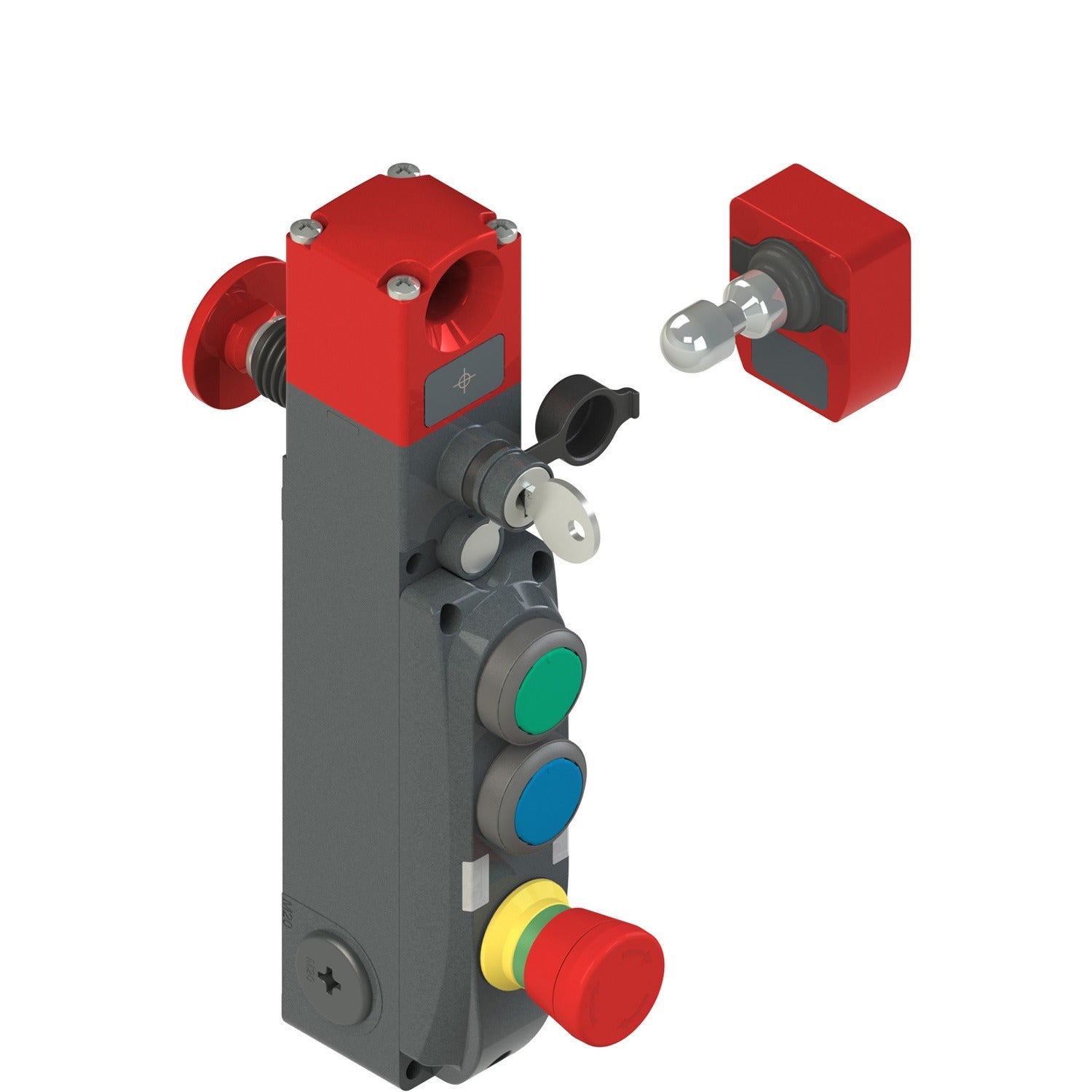

Pizzato NG 2D6D418M-F31 NG series safety switch with lock and integrated control devices, with actuator

AKB000007194

Specification Details
Protection Degree IP65 according to EN 60529
Cover Configuration 3 devices
Housing Metal housing, three threaded M20x1.5 conduit entries
Head Rotating head with lock auxiliary release device and escape pushbutton
Working Method D working method, locked actuator with de-energized solenoid
Inputs and Outputs
  • 2 safety inputs IS1-IS2
  • 2 safety outputs OS1-OS2
  • 1 signalling output O3: actuator inserted
  • 1 signalling output O4: actuator locked
  • I4 or IE1-IE2 inputs for solenoid activation
  • 1 input I3: actuator programming / reset
Safety Output Activation (OS) Activation mode 1: safety outputs active with actuator inserted and locked
Actuator Complete with actuator with high coding level VN NG-F31
Type of Connection Without connector
