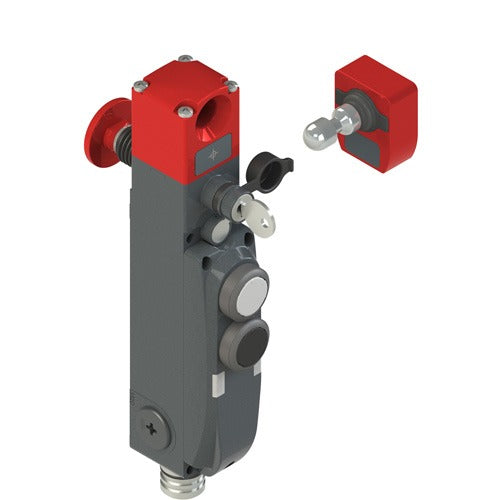

Pizzato NG 2D6D421E-F31E34K602 NG series safety switch with lock and integrated control devices, with actuator

AKB000007205

Protection degree: IP65 according to EN 60529
IP67 according to EN 60529 and IP69K according to ISO 20653
Cover, position 1: 1 pushbutton white 1NO+1NC
Cover, position 2: 1 pushbutton black 1NO+1NC
Housing: Metal housing, three threaded M20x1.5 conduit entries
Testa: Testa D6-E34
Working method: D working method, locked actuator with de-energized solenoid
Inputs and outputs: 2 safety inputs IS1-IS2,
2 safety outputs OS1-OS2,
1 signalling output O3: actuator inserted,
1 signalling output O4: actuator locked,
I4 or IE1-IE2 inputs for solenoid activation,
1 input I3: actuator programming / reset
Safety output activation OS: Activation mode 2: safety outputs active with actuator inserted
Actuator: Complete with actuator with high coding level VN NG-F31
