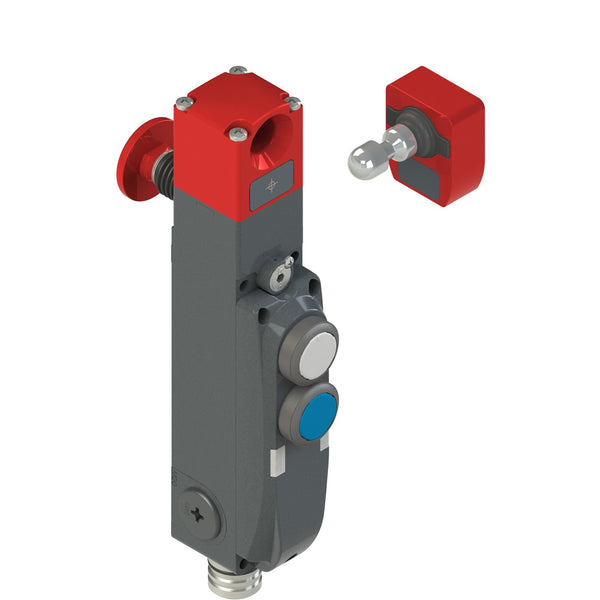

Pizzato NG 2D7D412P-F31K602 NG series safety switch with lock and integrated control devices, with actuator

AKB000007318

Specification Details
Protection Degree IP65 according to EN 60529
Housing Metal housing, three threaded M20x1.5 conduit entries
Head Rotating head with escape pushbutton
Working Method D working method, locked actuator with de-energized solenoid
Inputs and Outputs 2 safety inputs (IS1-IS2)
2 safety outputs (OS1-OS2)
1 signalling output (O3): actuator inserted
1 signalling output (O4): actuator locked
I4 or IE1-IE2 inputs for solenoid activation
1 input (I3): actuator programming/reset
Safety Output Activation OS Activation mode 1: Safety outputs active with actuator inserted and locked
Actuator Complete with actuator with high coding level VN NG-F31
