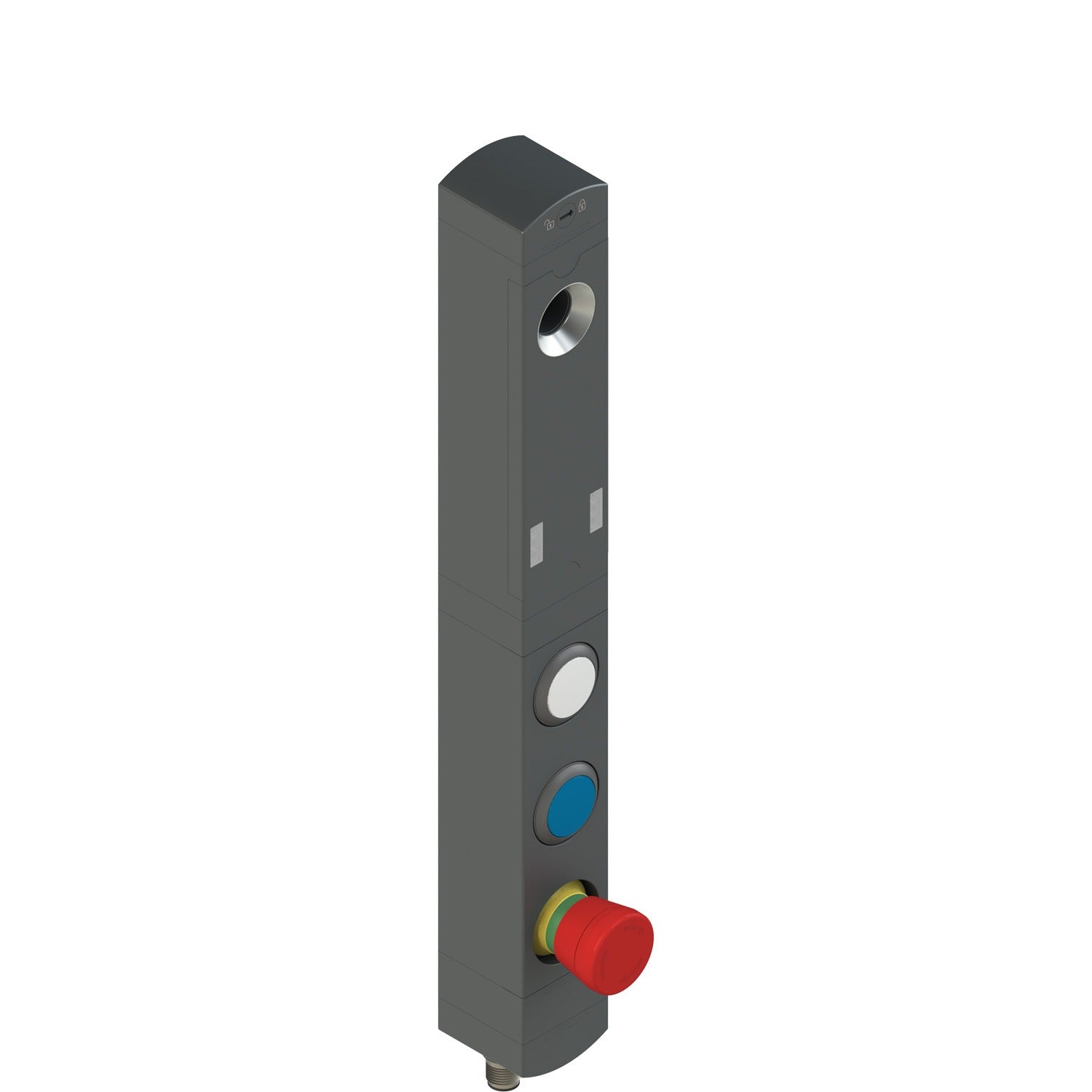

Pizzato NS D4AZ1SRK-N002 NS series safety switch with lock and integrated control devices

AKB000006778

Housing Technopolymer housing
Working Method D working method, locked actuator with de-energized solenoid
Mode 1 OS safety outputs active with locked protection
Inputs and Outputs 2 safety inputs IS1-IS2
2 safety outputs OS1-OS2
1 signalling output O3: actuator inserted
1 signalling output O4: actuator locked
2 solenoid activation inputs IE1-IE2
1 programming / reset input I3
Auxiliary Release with Variable Orientation Front screw release
Output Connection Direction Cable or connector at bottom
Actuator Without actuator
Protection Degree IP65 according to EN 60529
Button Configuration 3 devices
Position 1: 1 pushbutton white 1NO
Position 2: 1 pushbutton blue 1NO
Position 3: 1 red emergency pushbutton, turn to release, 2NC
Type of Connection Two M12 connectors (12-pole + 12-pole)
