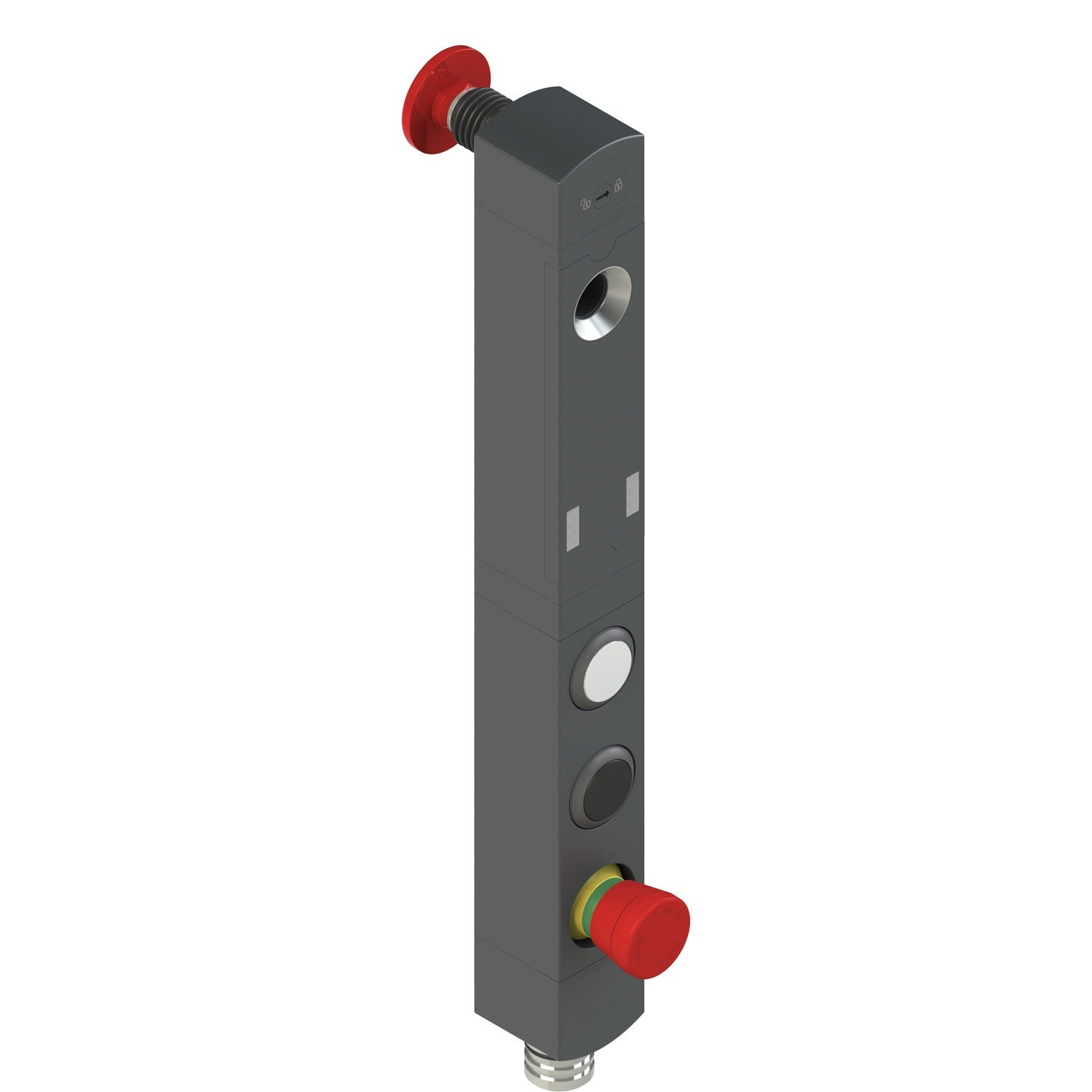

Pizzato NS D4CE1STK-N003 NS series safety switch with lock and integrated control devices

AKB000006804

Housing Technopolymer housing
Working Method D working method, locked actuator with de-energized solenoid
Mode 1 OS safety outputs active with locked protection
Inputs and Outputs - 2 safety inputs IS1-IS2
- 2 safety outputs OS1-OS2
- 1 signalling output O3: actuator inserted
- 1 signalling output O4: actuator locked
- 2 solenoid activation inputs IE1-IE2
- 1 programming/reset input I3
Auxiliary Release with Variable Orientation Front screw release and rear emergency pushbutton
Output Connection Direction Cable or connector at bottom
Actuator Without actuator
Button Configuration 3 devices:
- Position 1: 1 pushbutton white 1NO
- Position 2: 1 pushbutton black 1NO
- Position 3: 1 red emergency pushbutton, turn to release, 2NC
Protection Degree IP65 according to EN 60529
