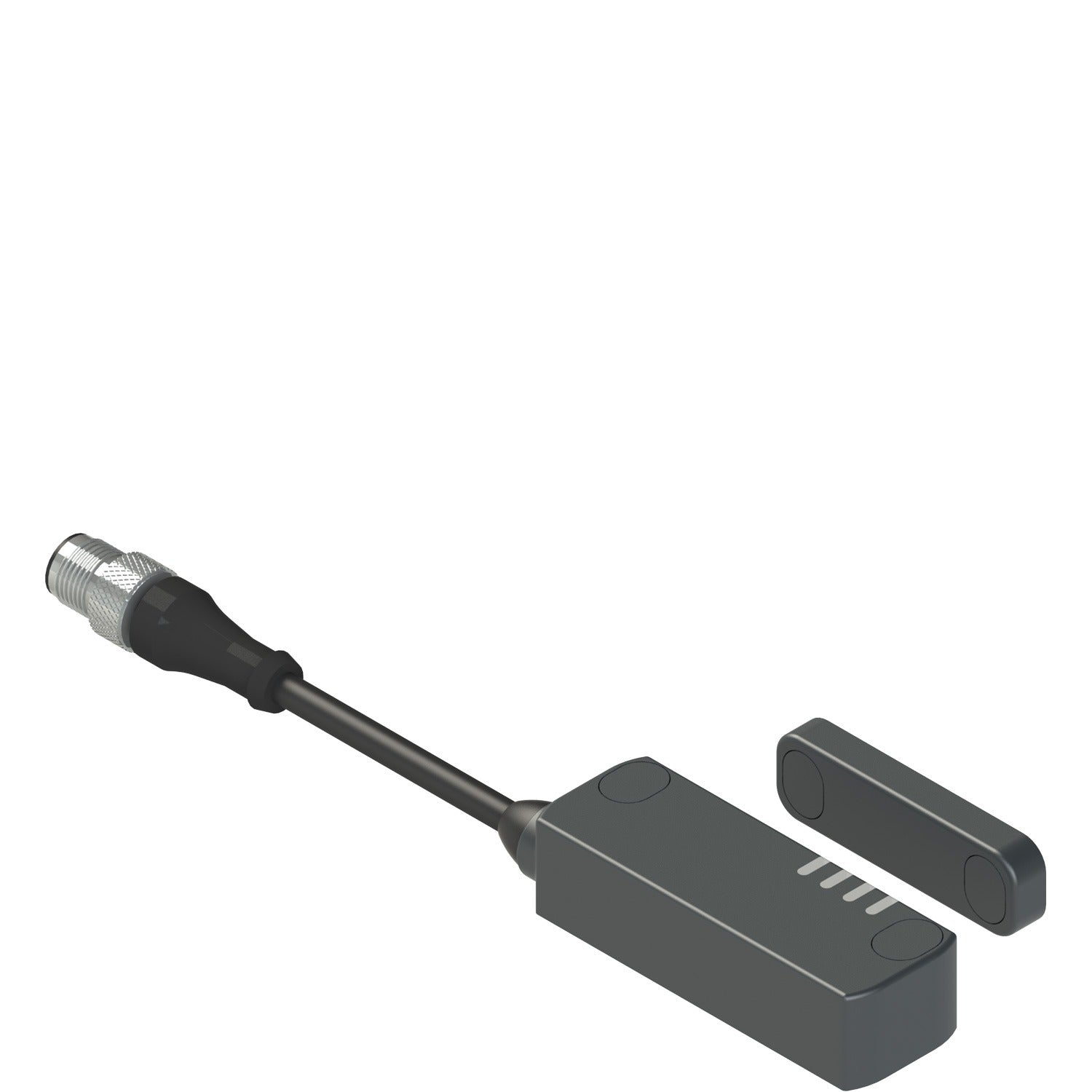

Pizzato ST DL420M0.1-L0T ST D series safety sensor

AKB000005955

Housing Technopolymer housing with output connection from left, ST D series
Inputs and Outputs 2 safety inputs IS1-IS2,
2 safety outputs OS1-OS2,
1 signalling output O3,
1 programming input I3
Power 24 Vdc
Type of Cable or Connector PVC cable with M12 connector
Actuator Coding Level Low coding level, actuators all the same (0T)
Actuator Actuation Distance Actuation distance 12 mm
Actuator Design Dimensions 53x16x7 mm, front fixing (L)
Ambient Temperature From -25 to +70°C
Protection Degree IP67 according to EN 60529 and IP69K according to ISO 20653
