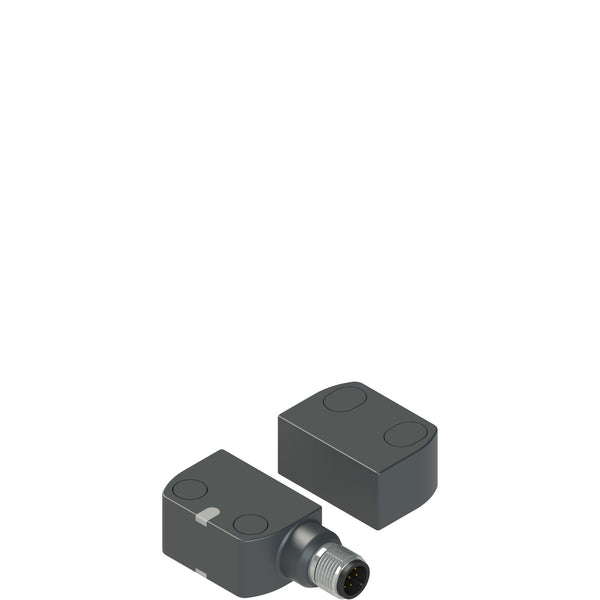

Pizzato ST GD420MK-G1T ST G series safety sensor

AKB000006012

Housing Technopolymer housing, ST G series
Inputs and Outputs 2 safety inputs IS1-IS2,
2 safety outputs OS1-OS2,
1 signalling output O3,
1 programming input I3
Power 24 Vdc
Type of Cable or Connector Integrated M12 stainless steel connector
Actuator Coding Level High coding level, all different actuators (1T)
Actuator Actuation Distance Actuation distance 11 mm
Actuator Design Dimensions 37x26x18 mm, lateral fixing (G)
Ambient Temperature From -25 to +70°C
Protection Degree IP67 according to EN 60529 and IP69K according to ISO 20653
