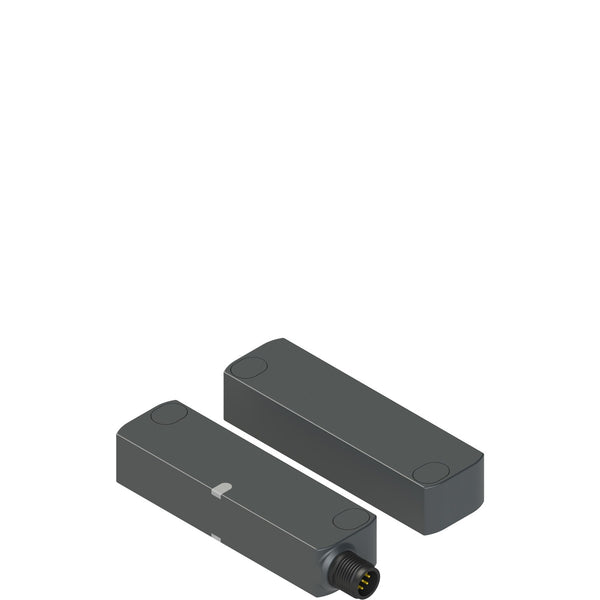

Pizzato ST HE420MP-H1TG ST H series safety sensor

AKB000006091

Housing Technopolymer housing, ST H series, with permanent magnet
Inputs and outputs 2 safety inputs IS1-IS2,
2 safety outputs OS1-OS2,
1 signalling output O3,
1 programming input I3
Power 24 Vdc
Type of cable or connector Integrated M12 technopolymer connector
Actuator coding level High coding level, all different actuators (1T)
Actuator actuation distance Actuation distance 11 mm
Permanent magnet holding force With magnet, holding force 50 N (G)
Actuator design Dimensions 90x25x18 mm, lateral fixing (H)
Ambient temperature From -25 to +70°C
Protection degree IP67 according to EN 60529 and IP69K according to ISO 20653
