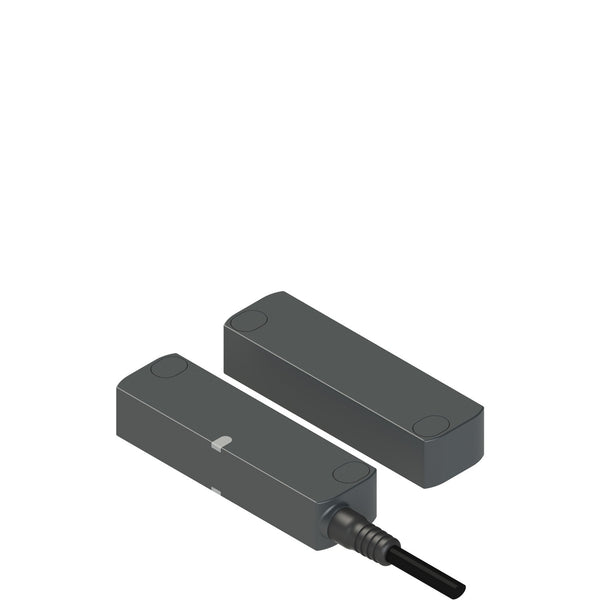

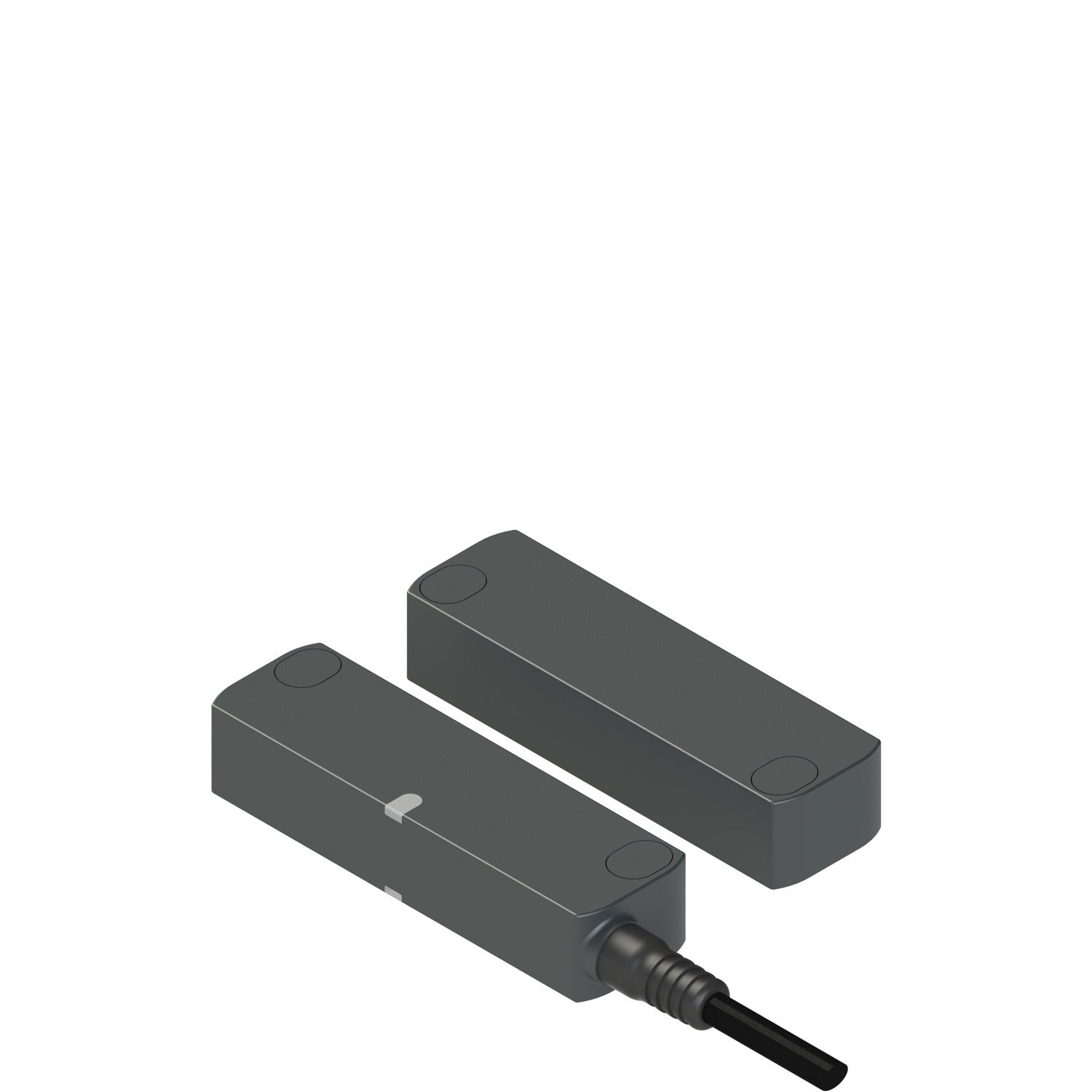

Pizzato ST HE510N2-H1TF ST H series safety sensor

AKB000006106

Housing: Technopolymer housing, ST H series, with permanent magnet
Inputs and Outputs: 2 safety inputs IS1-IS2,
2 safety outputs OS1-OS2,
1 signalling output O3,
1 feedback input EDM
Power: 24 Vdc
Type of Cable or Connector: PVC cable
Actuator Coding Level: High coding level, all different actuators (1T)
Actuator Actuation Distance: Actuation distance 11 mm
Permanent Magnet Holding Force: With magnet, holding force 40 N (F)
Actuator Design: Dimensions 90x25x18 mm, lateral fixing (H)
Ambient Temperature: From -25 to +70°C
Protection Degree: IP67 according to EN 60529 and IP69K according to ISO 20653
