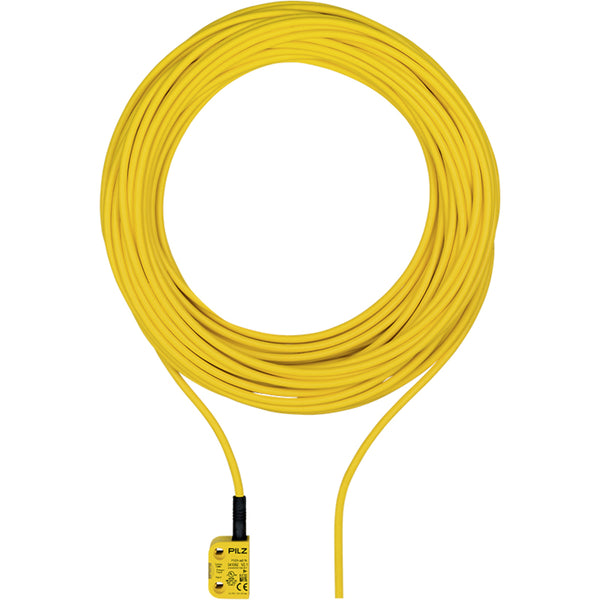

PILZ PSEN cs3.1b 1 switch

Write a review
Rs. 0.00

Technical Data
Electrical Data
Supply voltage (V) : 24 V
Type of supply voltage U1 : DC
Power consumption DC : 1 W
Inputs
Number of inputs : 2
DC voltage at input : 24 V DC
Semiconductor Outputs
Number of OSSD outputs : 2
Number of sig. outputs : 1
Potential isolation S/C O : No
S/C output short circuit proof : Yes
Utilisation cat. to EN 60947-1 : DC-12
Environmental Data
Ambient temperature standard : EN 60068-2-14
Ambient temperature : -25 - 70 Ā°C
Max. ambient temp. at Hmax : +60 Ā°C
Max. ambient temp. at 2000 m : +70 Ā°C
Storage temperature standard : EN 60068-2-1/-2
Climatic suitability standard : EN 60068-2-78
Humidity rating : 93 % r. h. at 40 Ā°C
Perm. operating height ASL : 4000 m
EMC to standard : EN 60947-5-3
Vibration to standard : EN 60947-5-2
Acc. shock to standard : 30g
Overvoltage category : III
Pollution degree clear.&creep. : 3
Protection type, housing
Switching Distances
Change op. distance temp.act.1 : Ā±0.01mm/Ā°C
Change op. distance temp.act.2 : Ā±0.1mm/Ā°C
Change op. distance temp.act.3 : Ā±0.01mm/Ā°C
Change op. distance temp.act.4 : Ā±0.01mm/Ā°C
Mechanical Data
Bend radius (when laying) K1 : 5 x Ƙ
Sensor can be flush-mounted : Yes, follow installation guide
Connection type : 10 m cable
Cable lines : Li9Y11Y 8 x 0.14 mmĀ²
Housing material upper part : PBT
Height dimension : 37 mm
Width dimension : 26 mm
Depth dimension : 18 mm
Gross weight : 410 g
Transponder
Operating frequency : 122 kHz - 128 kHz
