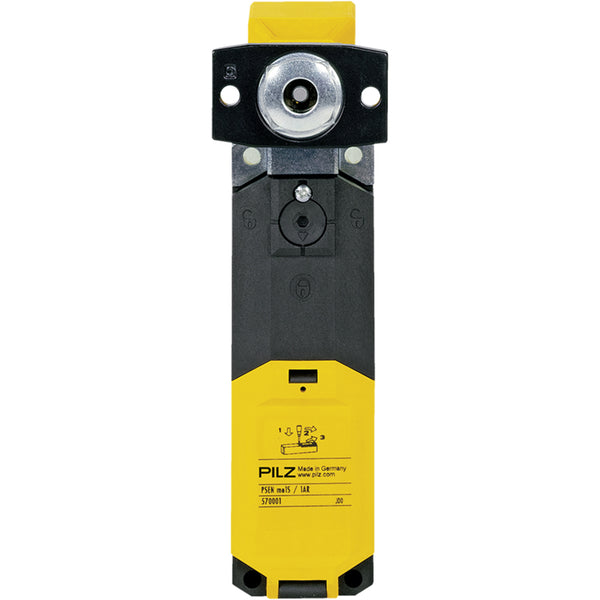

Pilz PSEN me1S / 1AR

Write a review
Rs. 0.00

Technical Data

Electrical Data
Supply Voltage (V) 24 V
Type of Supply Voltage U1 AC/DC
Power Consumption AC 4.4 VA
Power Consumption DC 4.4 W
Relay Outputs
Utilisation Cat. AC/DC1 Stand. EN 60947-4-1
Voltage AC1 Safety Cont. 240 V
Max. Current AC1 Safety Cont. 2.5 A
Utilisation Cat. AC15/DC13 Sta. EN 60947-5-1
Voltage AC15 Safety Cont. 230 V
Max. Current AC15 Safety Cont. 2.5 A
Environmental Data
Ambient Temperature -25 - 70 Ā°C
Protection Type, Housing
-
Mechanical Data
Holding Force 1500 N
Connection Terminal Spring-loaded Terminal
Terminal Style Fixed
Height Dimension 184 mm
Width Dimension 42.5 mm
Depth Dimension 51 mm
Net Weight 335 g
Gross Weight 513 g
