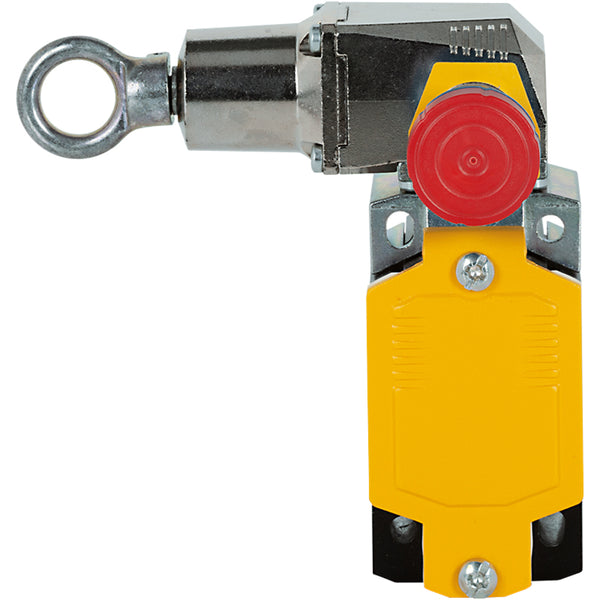

Pilz PSEN rsm 1.0-300-0-2-0

SUA00001279

Technical Data

Relay Outputs
Utilisation Cat. AC15/DC13sta. EN 60947-5-1
Voltage AC15 Safety Cont. 240 V
Max. Current AC15 Safety Cont. 3 A
Voltage DC13 Safety Cont. 250 V
Environmental Data
Ambient Temperature -30 - 75 °C
Mechanical Data
Housing Material Lower Section Aluminium Die Cast
Housing Material Upper Part Aluminium Die Cast
Material Actuator Zn Die Cast
Connection Terminal Screw Terminal
Height Dimension 115 mm
Width Dimension 111 mm
Depth Dimension 67 mm
Net Weight 464 g
Gross Weight 611 g
