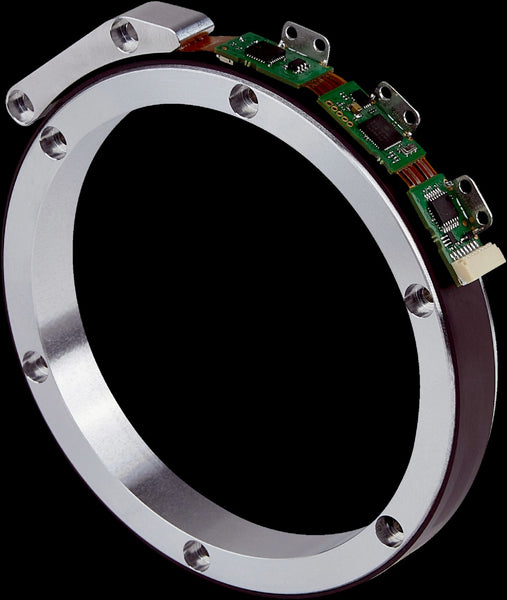

SICK Accessories: Further accessories MBR-084-KLB

SAS00004074

Accessory group Magnets
Description Magnetic tape ring inner diameter: 84 mm, outer diameter: 100 mm, width: 10 mm, weight: ≤ 0.75 kg, magnetic tape material: 17410 hard ferrite 9/28 P, material ring: Aluminum, period length: 2 mm, operating temperature range: –30 °C ... +100 °C, storage temperature range: –30 °C ... +100 °C, temperature coefficient: (11 ± 1) μm/K/m
Material 17410 Hard ferrite 9/28 P
Temperature resistance min ... max –30 °C ... +100 °C
Inner Diameter 84 mm
Outer Diameter 100 mm
Width 10 mm
Weight ≤ 0.75 kg
Period Length 2 mm
Storage Temperature Range –30 °C ... +100 °C
Operating Temperature Range –30 °C ... +100 °C
Temperature Coefficient (11 ± 1) μm/K/m
