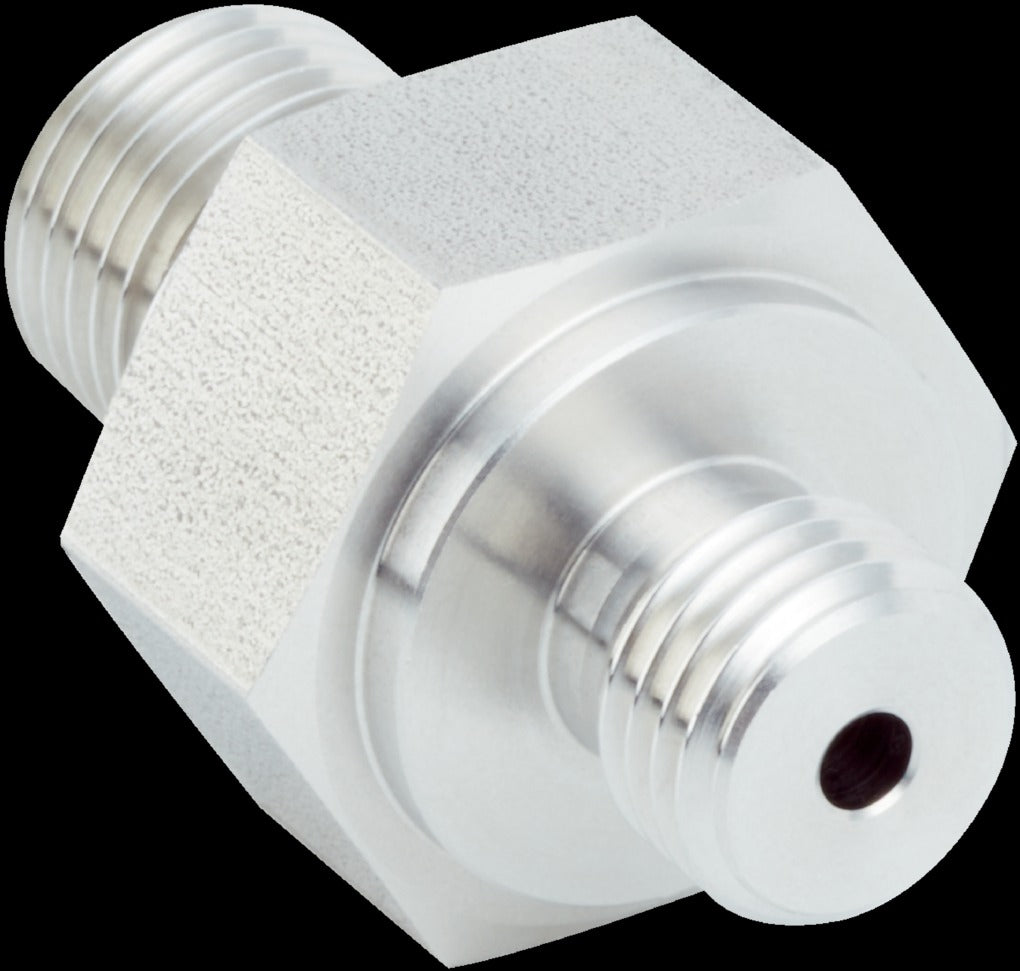

SICK Accessories: Mounting systems BEF-AD-G14-SAE-PXX SCREW-IN ADAPTER

SAS00003787

Accessory group Flanges
Accessory family Flange plates
Material Stainless steel 1.4404
Description Process adapter for pressure sensors with G 1/4” female thread; attachment on sensor side: G 1/4”B (according to EN 837-1) including seal (stainless steel); connection on process side: SAE 7/16-20 (according to SAE J514) including seal (FKM); width across flats: 21; pressure resistance according to standard, but max. 345 bar (possible classification according to Pressure Equipment Directive (DGRL) is application-specific and therefore the responsibility of the user/operating entity.)
