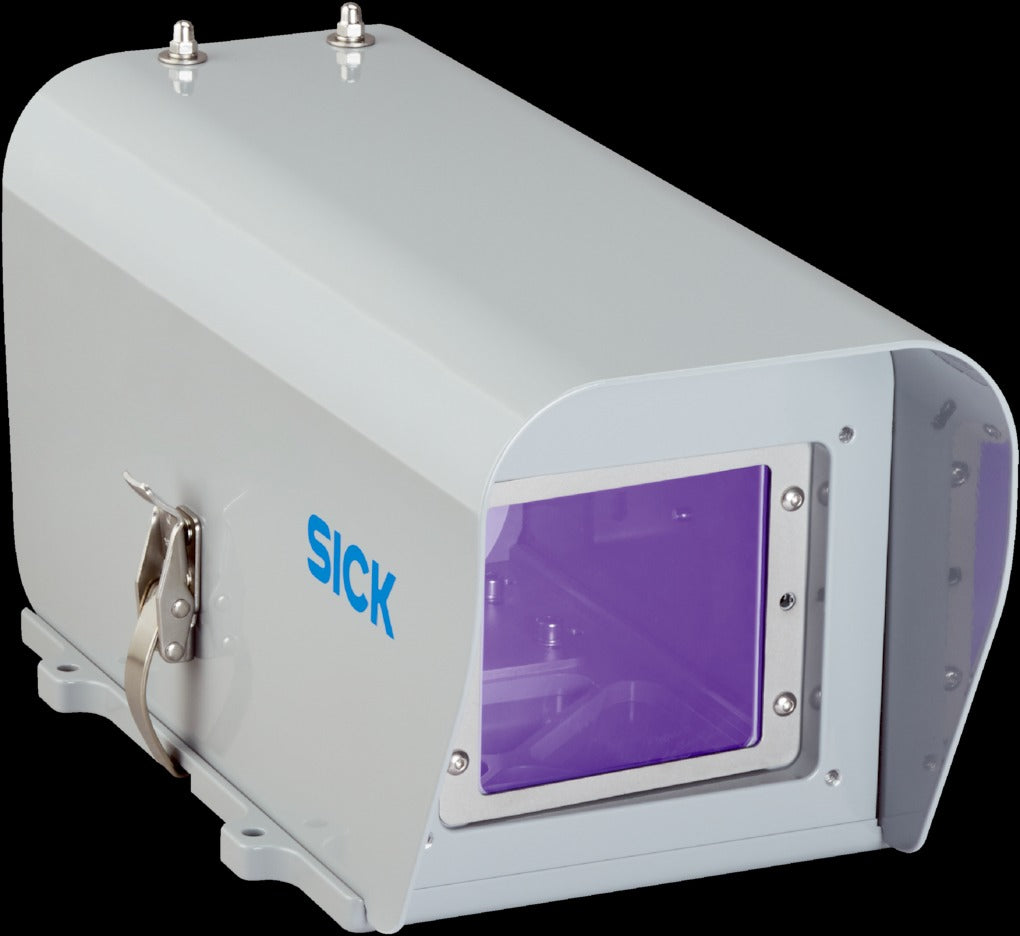

SICK Accessories: Mounting systems Heavy-duty protective housing with cooling

SAS00003523

Accessory Group Device protection (mechanical)
Accessory Family Protective housings and protective pipes
Material Housing: aluminum. Attachments: stainless steel, zinc coated and passivated steel, plastic, EPDM, NBR, elastomer, glass
Items Supplied Heavy-duty protective housing with water cooling, alignment bracket and front screen (pre-installed). The tube for the heavy-duty protective housing is not included with delivery.
Description Min. cooling water flow rate 2 l/min, max. water pressure 6 bar. The housing and the optional protective tube can be flushed out with compressed air (max. 100 mbar). The housing can be opened from the top without a tool. Due to space constraints, connecting cables with 90° angled, pre-assembled male connectors/female connectors are required.
Weight 4.2 kg
Ambient Operating Temperature +95 °C, at a cooling water temperature of 20 °C
+80 °C, at a cooling water temperature of 30 °C
+75 °C, at a cooling water temperature of 35 °C
