SICK Accessories: Mounting systems KUP-0606-S

SAS00004897

Accessory group Shaft adaptation
Accessory family Shaft couplings

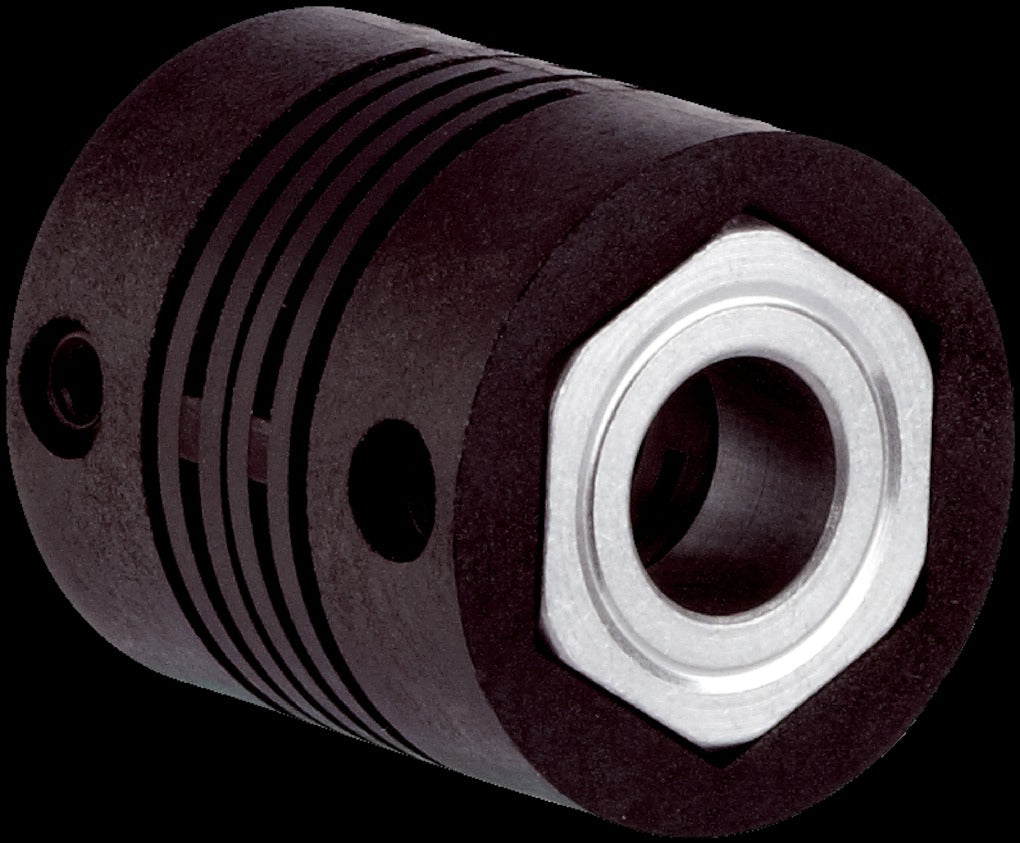

Description Cross-slotted coupling, shaft diameter 6 mm / 6 mm, maximum shaft offset: radial ± 0.3 mm, axial ± 0.2 mm, angle ± 3°; max. speed 10,000 rpm, –10° to +80 °C, max. torque 80 Ncm; material: fiber-glass reinforced polyamide, aluminum hub
Specialty Maximum shaft offset: radial +/- 0.3 mm, axial +/- 0.2 mm, angular +/- 3°; max. speed 10,000 rpm, –10° to +80 °C, max. torque 80 Ncm; material: fiber-glass reinforced polyamide, aluminum hub
