SICK Accessories: Mounting systems KUP-0610-BS

SAS00004949

Accessory group Shaft adaptation
Accessory family Shaft couplings

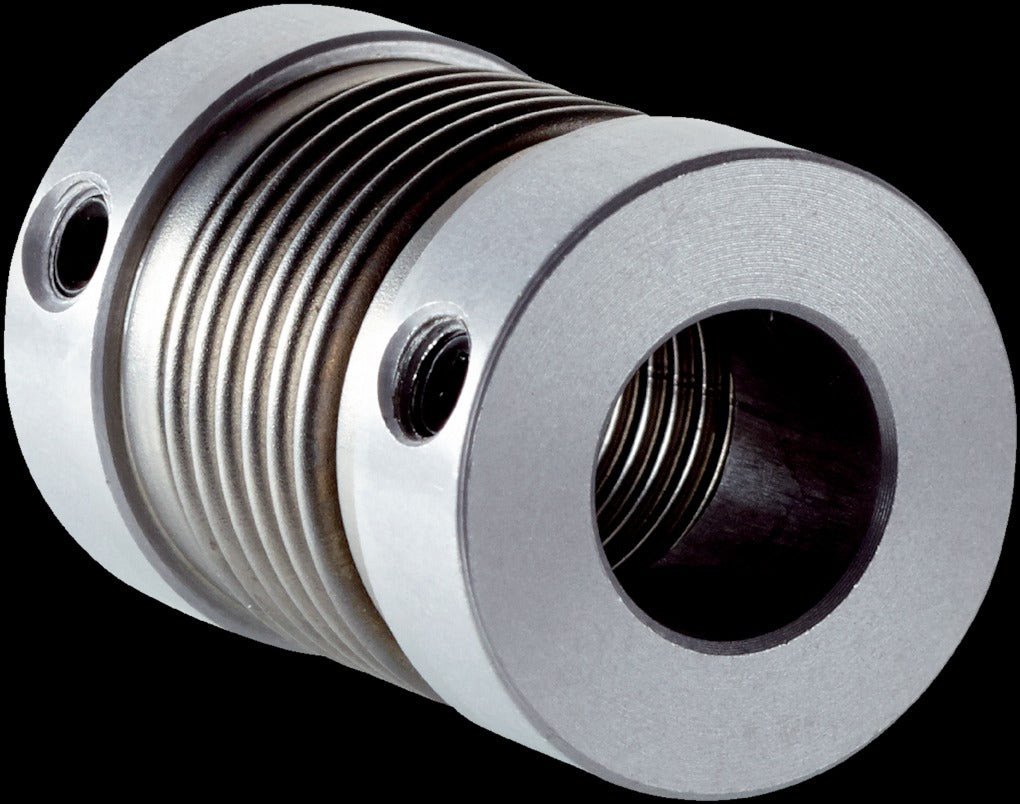

Description Bellows coupling, shaft diameter 6 mm / 10 mm; maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular ± 4°; max. speed 10,000 rpm; –30 °C ... +120° C; max. torque 120 Ncm; material: stainless steel bellows, fixed with two setscrews each.
Shaft diameter 6 mm / 10 mm
Maximum shaft offset Radial ± 0.25 mm, Axial ± 0.4 mm, Angular ± 4°
Max. speed 10,000 rpm
Temperature range –30 °C ... +120° C
Max. torque 120 Ncm
Material Stainless steel bellows
Fixation Fixed with two setscrews each
