SICK Accessories: Mounting systems KUP-0610-S

SAS00004882

Accessory group Shaft adaptation
Accessory family Shaft couplings

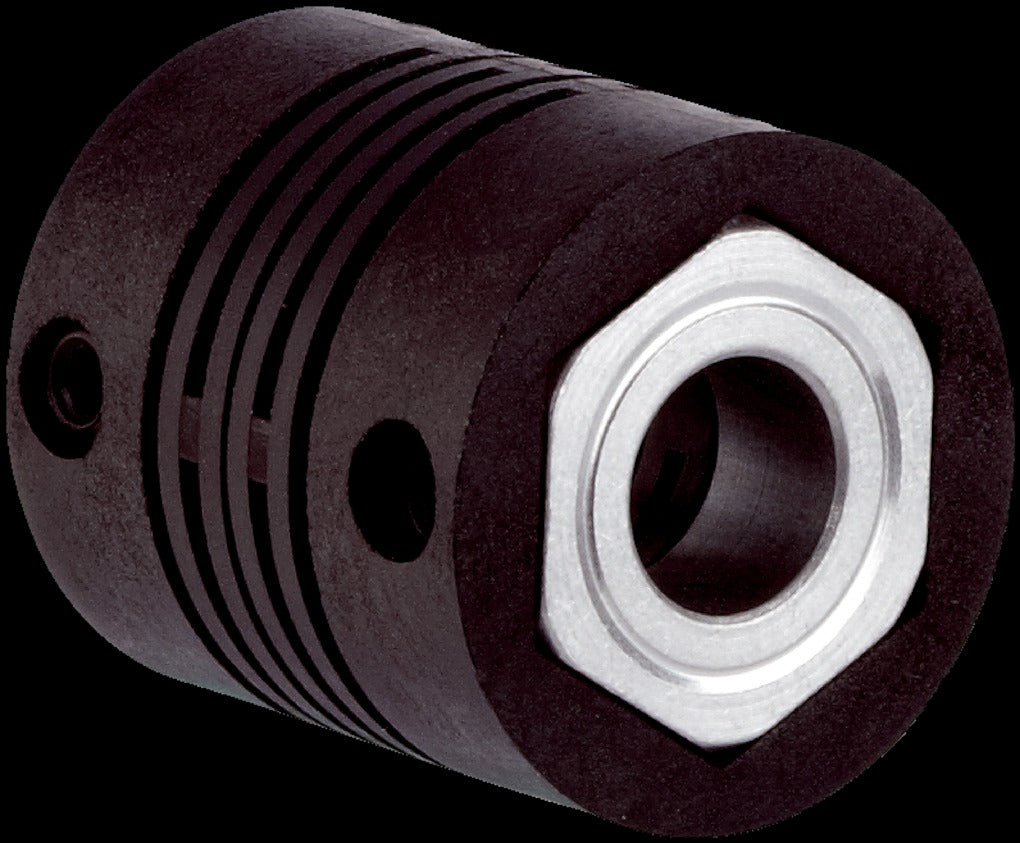

Description Bar coupling, shaft diameter 6 mm / 10 mm, max. shaft offset: radial ± 0,3 mm, axial ± 0,3 mm, angular ± 3°; max. speed 10.000 rpm, –10° to +80 °C, max. torque: 80 Ncm, material: fiber-glass reinforced polyamide, aluminum hub
Specialty Max. shaft offset: radially +/- 0,3 mm, axially +/-0,2 mm, angle +/- 3 degrees; max. speed 10.000 rpm, –10 to +80 degrees Celsius, max. torque: 80 Ncm, material: Polyamid fiberglass reinforced, hubs of aluminium, torsional spring stiffness of 38 Nm/rad, radial spring stiffness: 115 N/mm, moment of inertia: 7 gcm², max. clamping torque: 150 Ncm, weight appr.: 10 g
