SICK Accessories: Mounting systems KUP-1010-BS

SAS00004914

Accessory group Shaft adaptation
Accessory family Shaft couplings

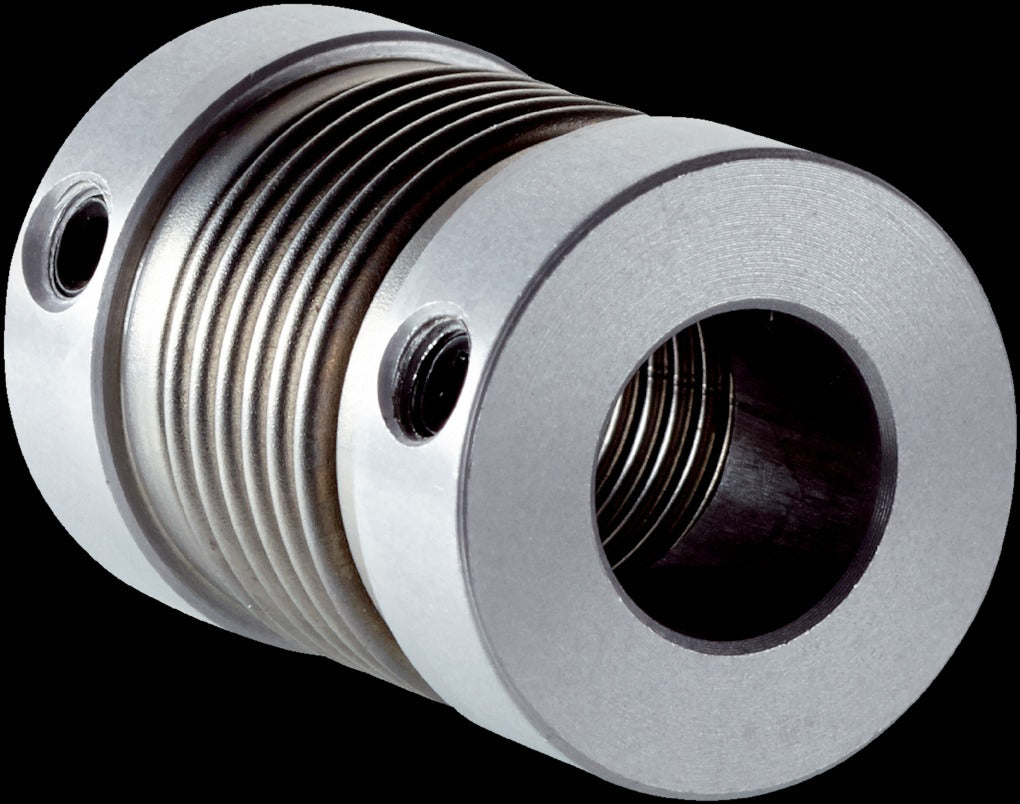

Description Bellows coupling, shaft diameter 10 mm / 10 mm, maximum shaft offset: radial ± 0.25 mm, axial ± 0.4 mm, angular ± 4°; max. speed 10,000 rpm, –30° ... +120° C, max. torque 120 Ncm; material: stainless steel bellows, fixed with two setscrews each
Specialty Max. shaft offset: radially ± 0.25 mm, axially ± 0.4 mm, angle ± 4°, max. speed 10,000 rpm, –30° to +120° C, torsional spring stiffness of 150 Nm/rad
