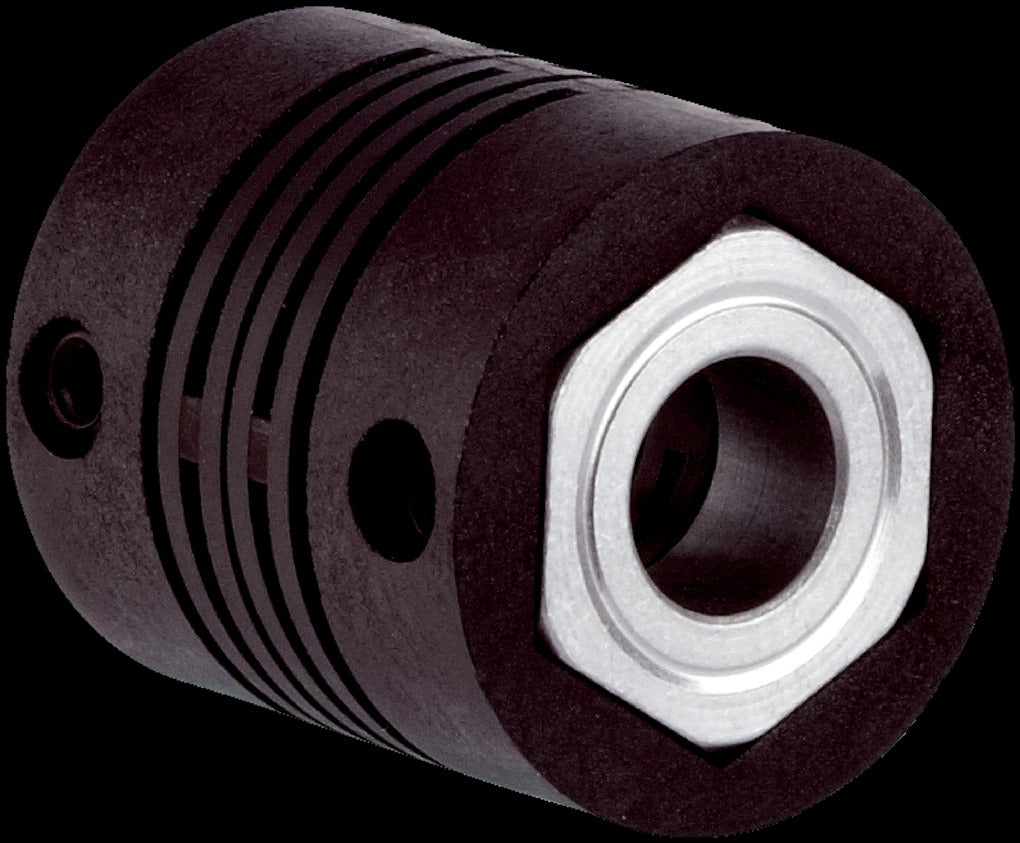

SICK Accessories: Mounting systems KUP-1010-S

SAS00004943

Accessory group Shaft adaptation
Accessory family Shaft couplings
Description Bar coupling, shaft diameter 10 mm / 10 mm; maximum shaft offset: radial ± 0.3 mm, axial ± 0.2 mm, angular ± 3°; speed 10,000 rpm, –10° to +80° Celsius, max. torque 80 Ncm; material: glass fiber-reinforced polyamide, aluminum hub
Shaft diameter 10 mm
Maximum shaft offset Radial ± 0.3 mm, Axial ± 0.2 mm, Angular ± 3°
Max. speed 10,000 rpm
Temperature range –10° to +80° Celsius
Max. torque 80 Ncm
Material Glass fiber-reinforced polyamide, aluminum hub
