SICK Accessories: Mounting systems KUP-1010-WSS

SAS00004887

Accessory group Shaft adaptation
Accessory family Shaft couplings

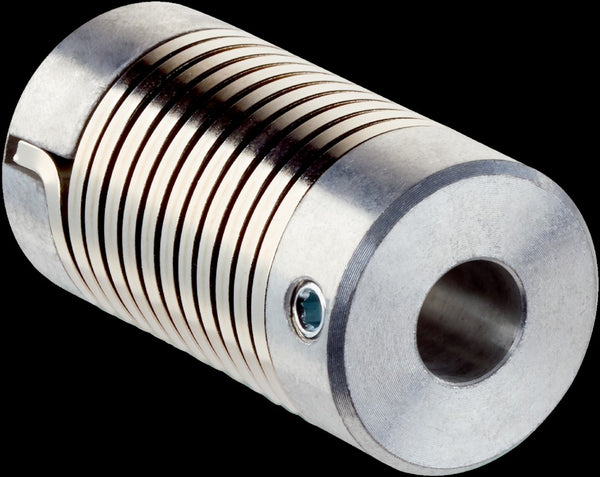

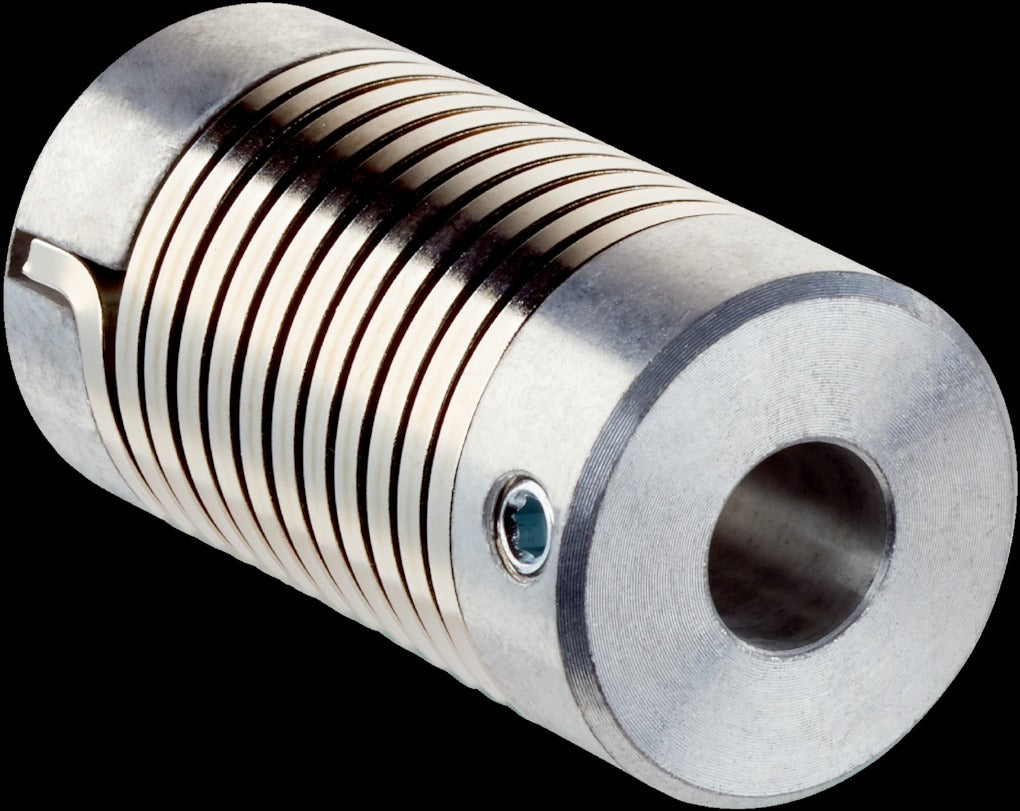

Description Spring coupling, shaft diameter 10 mm / 10 mm, maximum shaft offset: radial +/- 1.5 mm, axial +/- 1.0 mm, angular +/- 5°, max. speed 3,000 rpm, –40° to +120 °Celsius, nominal torque 300 Ncm, rotational angle at half nominal torque, direction of rotation right viewed on driving shaft 40°, left viewed on driving shaft 60°, material: spring steel 1.1200 nickel plated, hubs made of stainless steel 1.4305
Specialty Maximum shaft offset: radial +/- 1.5 mm, axial +/- 1.0 mm, angular +/- 5°; max. speed 3,000 rpm, –40° to +120 °Celsius, max. nominal torque 300 Ncm; material: spring steel 1.1200 nickel plated, hubs made of stainless steel 1.4305
