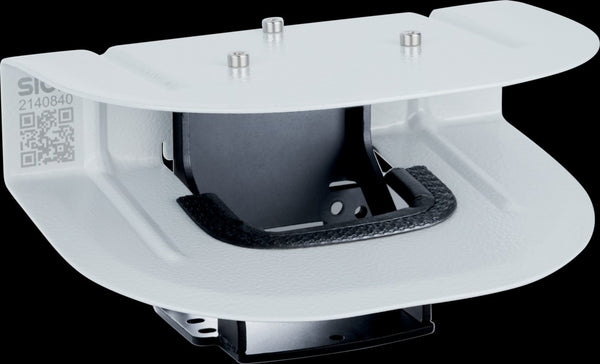

SICK Accessories: Mounting systems Mounting bracket with integrated weather protection 200°

SAS00003586

Property Details
Accessory Group Device protection (mechanical)
Accessory Family Protective housings and protective pipes
Suitable For picoScan100
Material Bracket: Seawater-resistant aluminum, 3 mm black anodized
Weather protection attachment: Seawater-resistant aluminum, 1.5 mm powder-coated RAL7035
Screws: Stainless steel A2
Items Supplied Mounting bracket, incl. 5 x M4x6 countersunk screws as per DIN7991 (but with SW 3) for fastening the device to the mounting bracket
3x M4x5 cylinder head screws for fastening the weather protection attachment
Dimensions (W x H x L) 180 mm x 100.5 mm x 120.3 mm
Description Mounting bracket with weather protection, 200° opening angle
Weight 294 g
Vibration Resistance Sine resonance scan: 10 Hz ... 1,000 Hz 1)
Sine test: 10 Hz ... 500 Hz, 5 g, 10 frequency cycles
Noise test: 10 Hz ... 250 Hz, 4.24 g RMS, 5 h 2)
Shock Resistance 50 g: 11 ms, ± 3 single shocks/axis 3)
25 g: 6 ms, ± 1,000 continuous shocks/axis 3)
50 g: 3 ms, ± 5,000 continuous shocks/axis 3)
Standards 1) IEC 60068-2-6:2007
2) IEC 60068-2-64:2008
3) IEC 60068-2-27:2008
