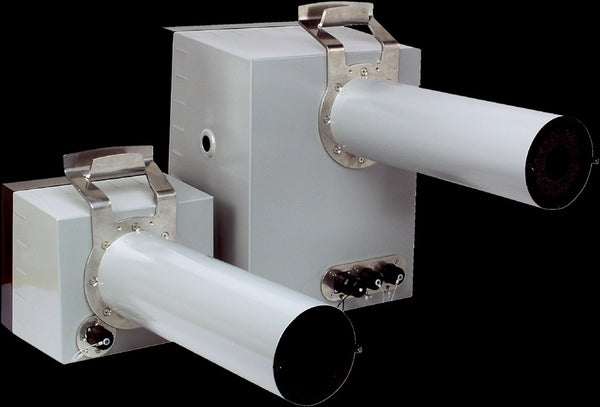

SICK Air quality measuring devices: VICOTEC320 System VICOTEC320

Rs. 0.00

Length of Measuring Path 10 m
Measuring Ranges K-value: 0 ... 15 kmā»Ā¹ / 0 ... 200 kmā»Ā¹
NO: 0 ... 20 ppm / 0 ... 45 ppm
NO2: 0 ... 1 ppm / 0 ... 5 ppm
CO: 0 ... 100 ppm / 0 ... 300 ppm
Temperature: ā€“25 ... +55 Ā°C / ā€“25 ... +75 Ā°C
Enclosure Rating IP69K
Dimensions (W x H x D) Sender/Receiver Unit: 718 mm x 470 mm x 310 mm (for details see dimensional drawings)
Reflector Unit: 617 mm x 278 mm x 245 mm (for details see dimensional drawings)
Connection Unit: 450 mm x 254 mm x 148 mm (for details see dimensional drawings)
Weight Sender/Receiver Unit: 20 kg
Reflector Unit: 9 kg
Connection Unit: 8 kg
Material Stainless steel 1.4571, powder-coated
Energy Supply Voltage: 115 V AC, Ā± 10 %
230 V AC, Ā± 10 %
Frequency: 50 Hz / 60 Hz
Power Consumption ā‰¤ 200 VA
