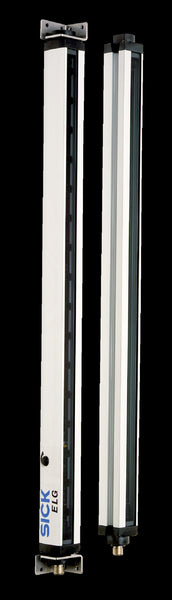

SICK Automation light grids: ELG ELG6-0900N541

IMM00002178

Dimensions (W x H x D): 30 mm x 53 mm x 78.5 mm
Sensing distance: 13 mm
Sensing distance tolerance: ± 5 mm
Housing design: X housing
Light source: LED, RGB1)
LED risk group marking: 1
Wave length: 460 nm, 530 nm, 625 nm
Light emission: Short device side
Light spot size: 2 mm x 4 mm
Light spot direction: Vertical2)
Teach-in mode: Single value teach-in, Multi value teach-in
Color mode: C (Color), C + I (Color + Illumination)
Output mode: 2 colors in standard mode/best fit mode, 3 colors in coded mode
Adjustment of the sensitivity: Continuous: 0 ... 999
Available job banks: 4
Output (channel): 2 × hardware switching outputs
Parameter presettings: None
Sensor principle: Sender/receiver
Minimum detectable object (MDO): 65 mm1)
Beam separation: 60 mm
Number of beams: 16
Detection height: 900 mm
Evaluation beams: Parallel beam
