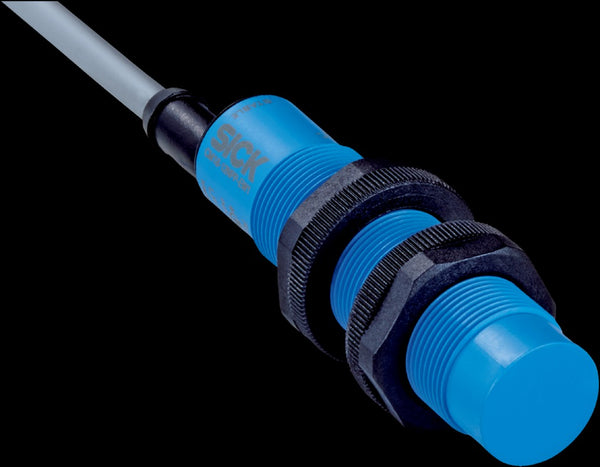

SICK Capacitive proximity sensors: CMB CMB18-12NPPEW2SA00

Write a review
Rs. 0.00

Housing: Metric
Thread size: M18 x 1
Diameter: Ƙ 18 mm
Sensing range Sn: 0 mm ... 12 mm
Safe sensing range Sa: 9.18 mm1)
Installation type: Non-flush
Switching frequency: 50 Hz
Connection type: Cable, 4-wire, 2 m2)
Switching output: PNP
Output function: Complementary
Output characteristic: Wire configurable
Electrical wiring: DC 4-wire
Adjustment: Potentiometer: Sensitivity (11 turns), Wire/pin: Sensitivity, IO-Link: Sensitivity, sensor parameters, and Smart Task functions
Enclosure rating: IP67, IP683), IP69K
Special features: Visual adjustment indicator, Smart Task, IO-Link
Pin 2 configuration: External input, Teach-in, switching signal
Items supplied: Mounting nut, PA12 plastic (2x), Screwdriver for potentiometer adjustment (1 x)
