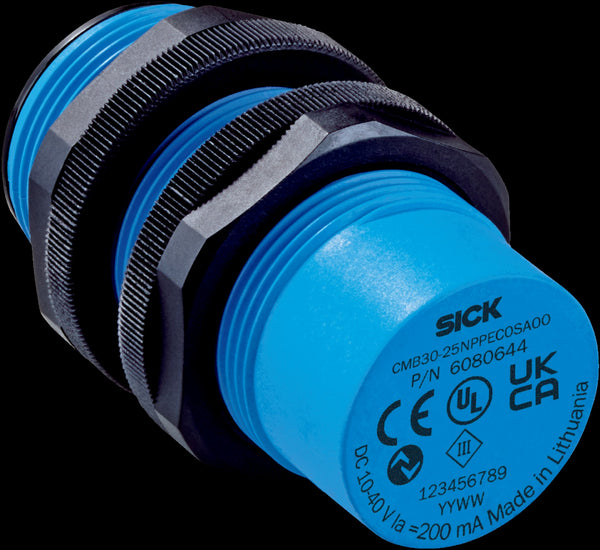

SICK Capacitive proximity sensors: CMB CMB30-25NPPEC0SA00

IMM00002092

Housing: Metric
Thread size: M30 x 1.5
Diameter: Ø 30 mm
Sensing range Sn: 0 mm ... 25 mm
Safe sensing range Sa: 19.13 mm1)
Installation type: Non-flush
Switching frequency: 50 Hz
Connection type: Male connector M12, 4-pin
Switching output: PNP
Output function: Complementary
Output characteristic: Wire configurable
Electrical wiring: DC 4-wire
Adjustment: Potentiometer: Sensitivity (11 turns), Wire/pin: Sensitivity, IO-Link: Sensitivity, sensor parameters, and Smart Task functions
Enclosure rating: IP67, IP682), IP69K
Special features: Visual adjustment indicator, Smart Task, IO-Link
Pin 2 configuration: External input, Teach-in, switching signal
Items supplied: Mounting nut, PA12 plastic (2x), Screwdriver for potentiometer adjustment (1 x)
