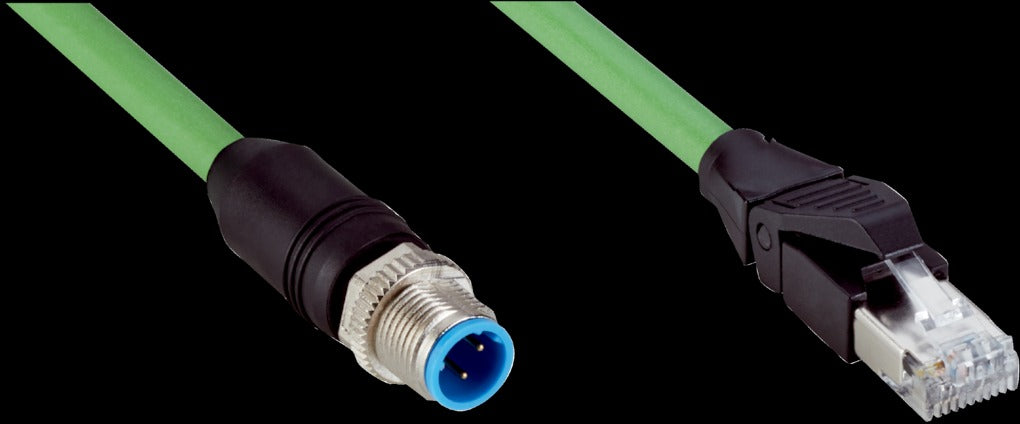

SICK Connectors and cable assemblies: Industrial Ethernet cables and fieldbus cables YM2D24-C75PN1MRJA4

SAS00006131

Connection type head A Male connector, M12, 4-pin, straight, D-coded
Connection type head B Male connector, RJ45, 4-pin, straight
Locking plug connector Screw-on connection (M12), snap-in locking (RJ45)
Connector material TPU
Connector color Black
Locking nut material Zinc die-cast, nickel-plated
Tightening torque 0.6 Nm
Width across flats 13
Cable 0.75 m, 4-wire, PUR, halogen-free
Jacket material PUR, halogen-free
Jacket color Green
Cable diameter 6.7 mm
Conductor cross section 0.34 mm²
