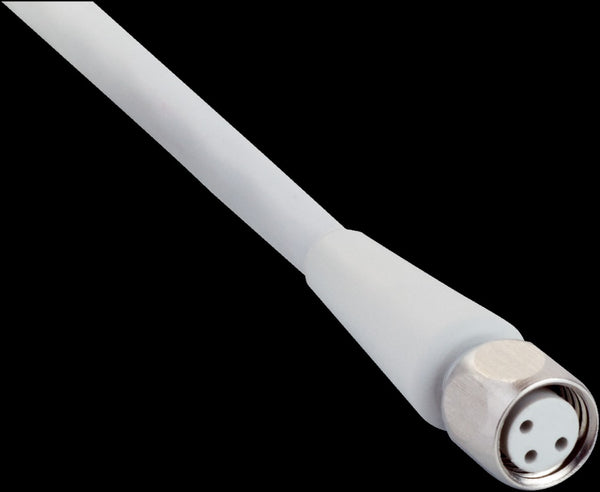

SICK Connectors and cable assemblies: Sensor/actuator cable DOL-0803-G25MRN

SAS00005670

Connection and Cable Specifications

Connection type head A Female connector, M8, 3-pin, straight
Connection type head B Flying leads
Connection type Flying leads
Connector material PP
Connector color Gray
Locking nut material Stainless steel (V4A/1.4404/316L)
Tightening torque 0.6 Nm
Cable 25 m, 4-wire, PP
Jacket material PP 1)
Jacket color Gray
Cable diameter 4.6 mm
Conductor cross section 0.34 mm²
