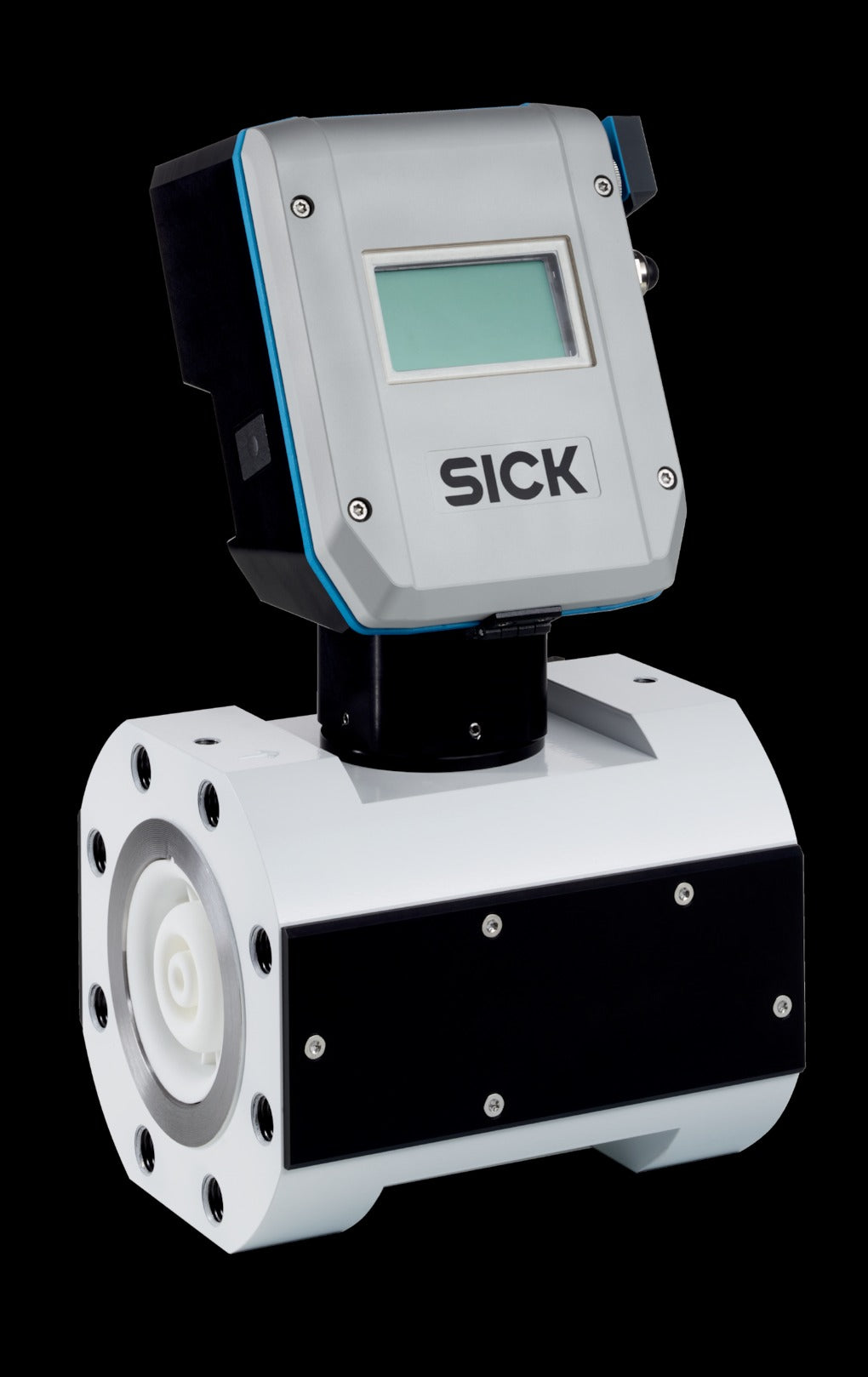

SICK Flow meters: FLOWSIC550 FLOWSIC550 High pressure gas flow meter for natural gas distribution

SAS00006665

Dimensions (W x H x D) See dimensional drawings
Weight DN50 | 2": 26 kg
DN80 | 3": 46 kg
DN100 | 4": 87 kg
DN150 | 6": 207 kg
Material in contact with media Low temperature carbon steel
Mounting Horizontal or vertical installation
Mild disturbances: with 3D straight inlet and 2D straight outlet piping;
Severe disturbances: with 5D straight inlet and 2D straight outlet piping
Electrical connection Voltage: Intrinsically safe supply: 8 ... 16 V DC
Max. 50 mA
Battery powered, lifetime 5 years
