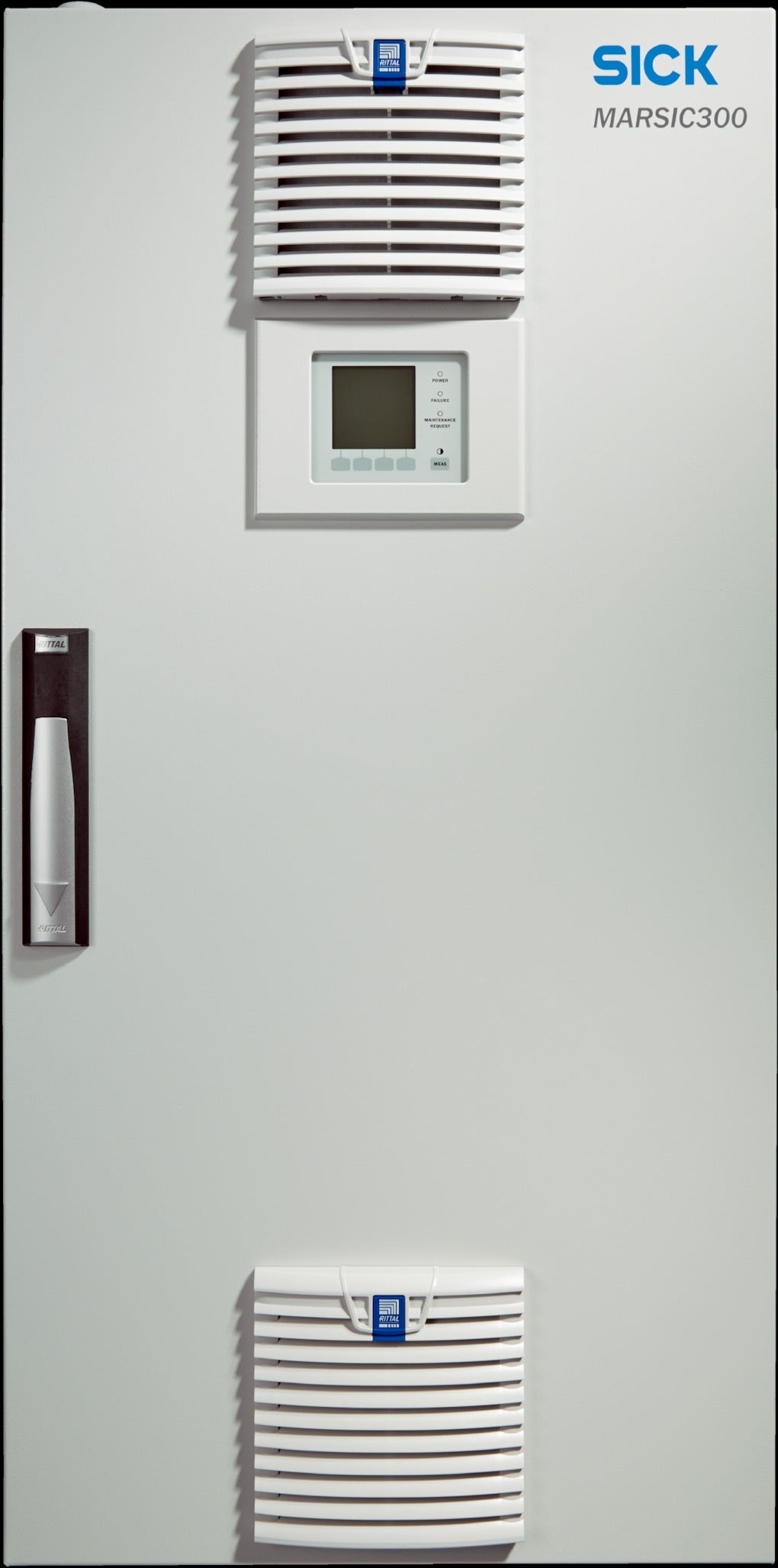

SICK Gas Analyzers: MARSIC300 System MARSIC300

SAS00006621

Ambient Temperature 0 °C ... +50 °C (Type approved up to 45 °C)
Storage Temperature –20 °C ... +70 °C
Ambient Pressure 900 hPa ... 1,100 hPa
Dimensions (W x H x D) 600 mm x 1,300 mm x 434 mm (for details see dimensional drawings)
Weight 120 kg
Material in Contact with Media Stainless steel 1.4547, PTFE, aluminium, coated
Mounting Wall-mounting
Energy Supply Three-phase current
3-phase: 115 V AC, 50/60 Hz
3-phase: 208 V AC, 50/60 Hz
3-phase: 230 V AC, 50/60 Hz
Special configurations with minimal equipment are also possible
Current Consumption At 230 V AC: ≤ 14 A
Power Consumption Analyzer cabinet: ≤ 1,000 VA
Sample gas line, heated: ≤ 95 VA/m
Gas sampling unit: ≤ 450 VA
Heated gas sampling pipe: ≤ 450 VA
