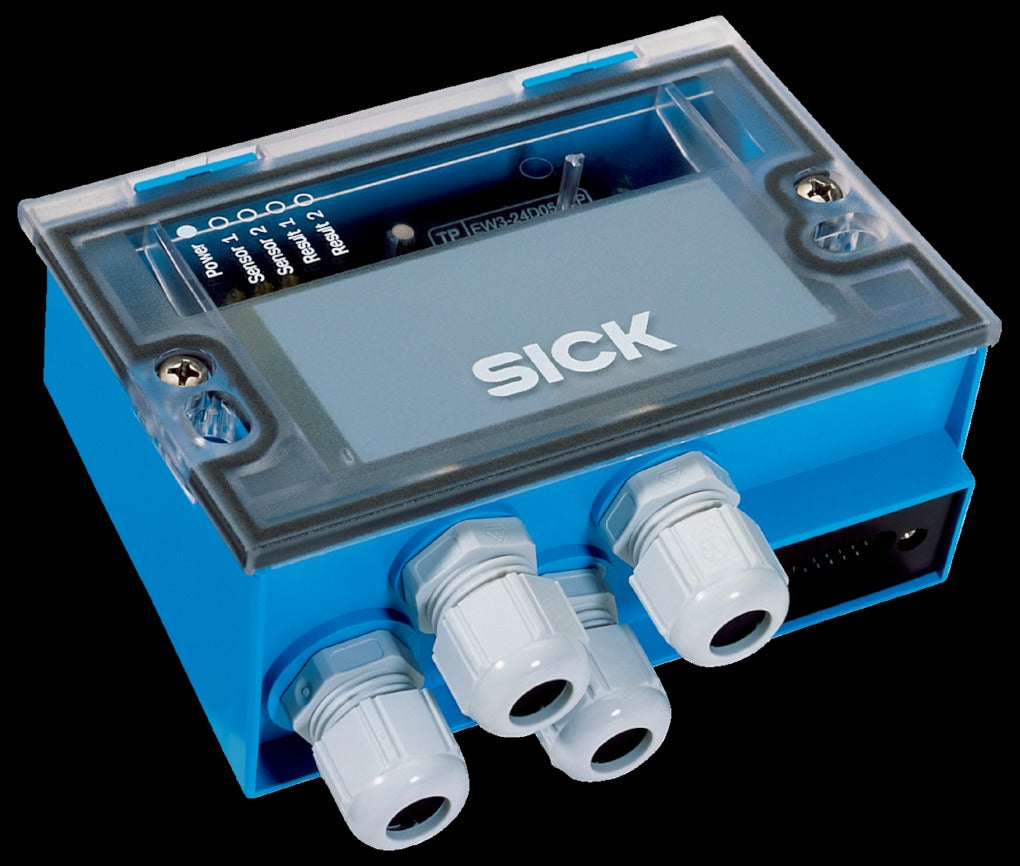

SICK Integration products: Connection Device Basic CDB405-001

SAS00005697

Product Specifications

Brief description Small connection module for 5-V hand-held scanners and ICR80x
Supported products Mobile handheld scanners, ICR80x
Cloning module support (CMC) No
Supports display module (CMD) No
Supports power supply module (CMP) No
Supports fieldbus gateway (CMF) No
Supply voltage 18 V DC ... 30 V DC
Power consumption 4 W
Housing Polycarbonate
Housing color Blue (RAL 5012)
Enclosure rating IP65
Protection class III
Weight 250 g
Dimensions (L x W x H) 124.2 mm x 113.1 mm x 53.9 mm
Scanner connection 15-pin D-Sub HD female connector
Service plug 9-pin D-Sub plug (internal)
