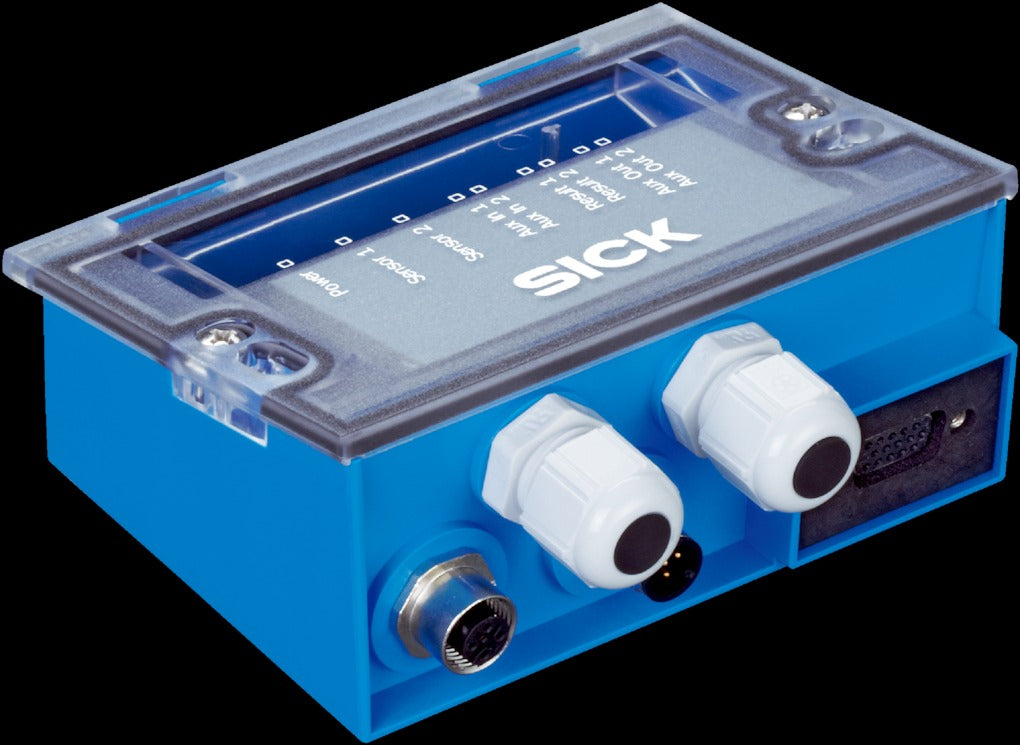

SICK Integration products: Connection Device Basic CDB620-101

SAS00005712

Brief description Small connection module for one sensor, 2 cable glands, 2 x M12 connector/socket for CAN, base for CMC600
Supported products
  • CLV61x - CLV65x
  • Lector62x
  • RFH6xx
  • RFU62x
Cloning module support (CMC) Yes
Supports display module (CMD) No
Supports power supply module (CMP) No
Supports fieldbus gateway (CMF) No
Supply voltage 10 V DC ... 30 V DC
Power consumption 1 W
Housing Polycarbonate
Housing color Blue (RAL 5012)
Enclosure rating IP65
Protection class III
Weight 260 g
Dimensions (L x W x H) 124.2 mm x 113.1 mm x 53.9 mm
Scanner connection 15-pin D-Sub HD female connector
Service plug 9-pin D-Sub plug (internal)
