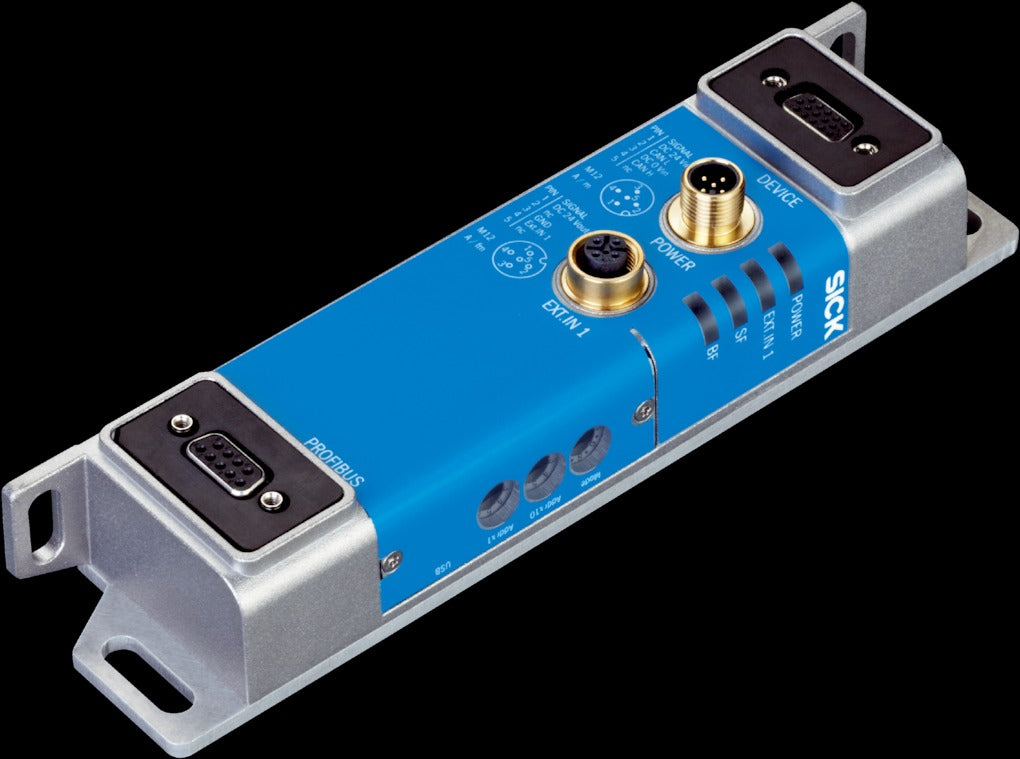

SICK Integration products: Connection Device Fieldbus CDF600-2103

SAS00005725

Brief description Fieldbus proxy/gateway for connecting identification sensors to PROFIBUS-DP networks (PROFIBUS interface: 1 x D-Sub, female connector, 9-pin)
Supported products
  • Lector series
  • CLV61x - CLV65x
  • CLV69x
  • RFID read/write device
  • Mobile handheld scanners
Cloning module support (CMC) Integrated
Supports display module (CMD) No
Supports power supply module (CMP) No
Supports fieldbus gateway (CMF) No
Connection type
  • 1 x 15-pin D Sub HD female connector (DEVICE)
  • 1 x 5-pin M12 male connector (POWER)
  • 1 x 5-pin M12 female connector (EXT. IN1)
  • 1 x 9-pin D Sub female connector (PROFIBUS)
  • 1 x USB female connector micro B (AUX)
Supply voltage (10 V DC ... 30 V DC)
Power consumption < 5 W, if no sensor is connected and the digital input is not connected
Housing Aluminum (unpainted)
Housing color Aluminum (unpainted)
Enclosure rating IP20
Protection class III
Weight + 375 g
Dimensions (L x W x H) 207 mm x 49.5 mm x 40.7 mm
Scanner connection RS-232
