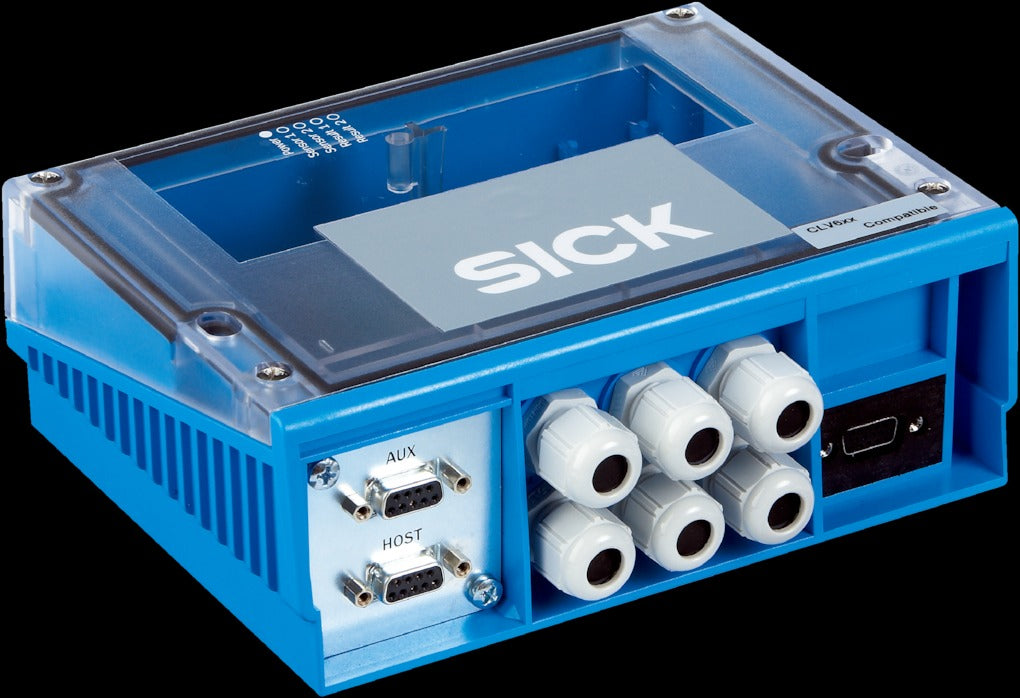

SICK Integration products: Connection Device Modular CDM420-0101

SAS00005719

Brief description Modular connection module for one sensor, Host and AUX interface available on face plate
Supported products
  • Lector series
  • CLV61x - CLV65x
Cloning module support (CMC) Yes
Supports display module (CMD) Yes
Supports power supply module (CMP) Yes
Supports fieldbus gateway (CMF) No
Power consumption Power consumption of the sensor + 0.5 W
Housing Polycarbonate
Housing color Blue (RAL 5012)
Enclosure rating IP65
Protection class III
Weight 800 g
Dimensions (L x W x H) 192 mm x 167 mm x 70 mm
Scanner connection 15-pin D-Sub HD female connector
Service plug 9-pin D-Sub plug (internal)
