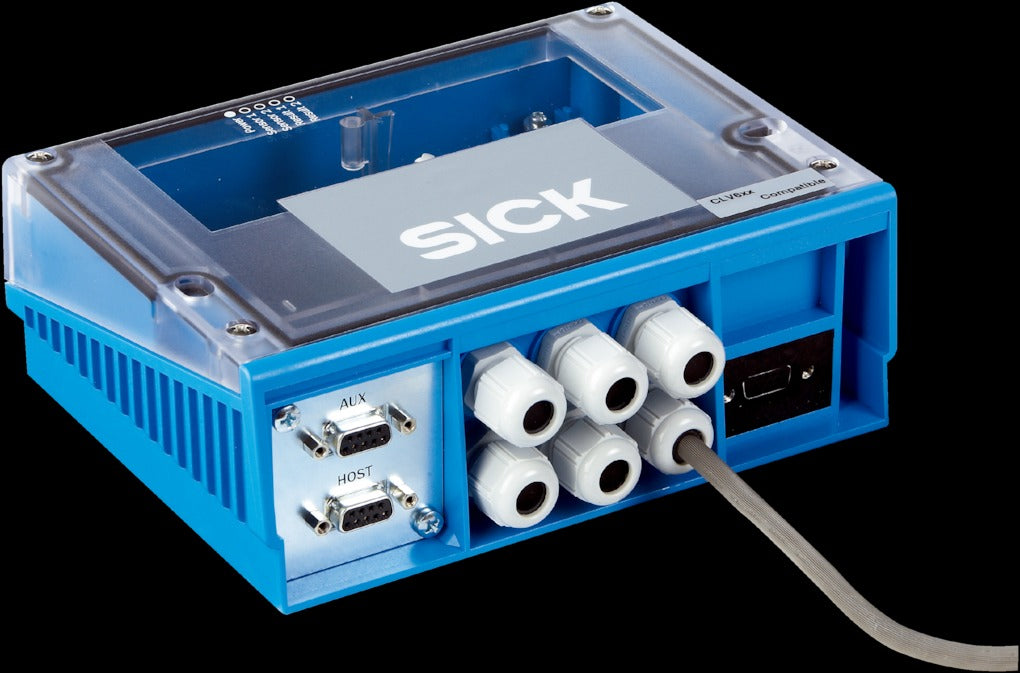

SICK Integration products: Connection Device Modular CDM420-0102

SAS00005723

Brief description Kit: Modular connection module for one sensor, Host and AUX interface available on front plate, CMP400 power supply, US power cord
Supported products
  • Lector series
  • CLV61x - CLV65x
  • RFH6xx
Cloning module support (CMC) Yes
Supports display module (CMD) Yes
Supports power supply module (CMP) Yes
Supports fieldbus gateway (CMF) No
Power consumption Power consumption of the sensor + 0.5 W
Housing Polycarbonate
Housing color Blue (RAL 5012)
Enclosure rating IP65
Protection class III
Weight + 800 g
Dimensions (L x W x H) 192 mm x 167 mm x 70 mm
Scanner connection 15-pin D-Sub HD female connector
Service plug 9-pin D-Sub plug (internal)
