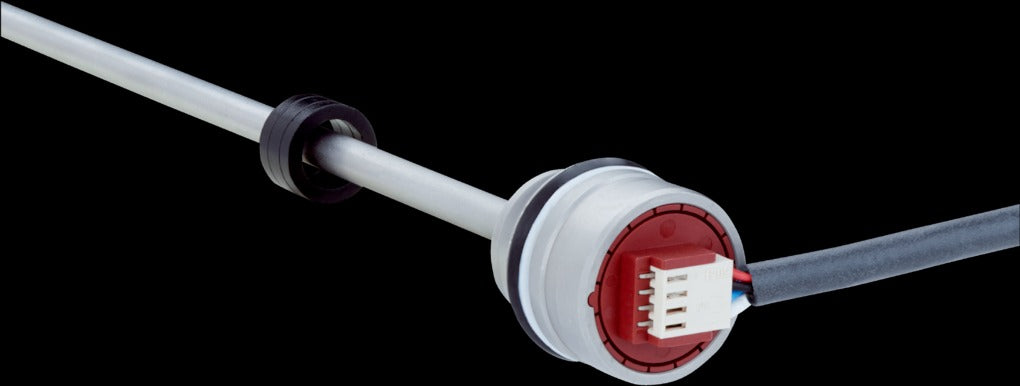

SICK Linear encoders: MAX MAX30N-72A10K80410

SAS00013521

Connection type Male connector, M12, 5-pin
PIN assignment 1=+24 V DC; 2=Signal 1; 3=Power ground; 4=N.C.; 5=Output signal ground (0 V)
Male connector coding A-coded
Supply voltage 24 V DC (± 20%)
Current consumption 50…100 mA
Housing 30 mm, 31f7 for IN cylinder mounting – cylinder bore hole 31H8
Ø pressure pipe 7 mm
Ø O-ring 24.99 mm x 3.53 mm
Ø support ring 31 mm x 25.8 mm x 1.4 mm
Ø connecting cable Ø 5.0 mm; 3 x 0.38 mm² (AWG22), stripped
Length of cable 5,000 mm
