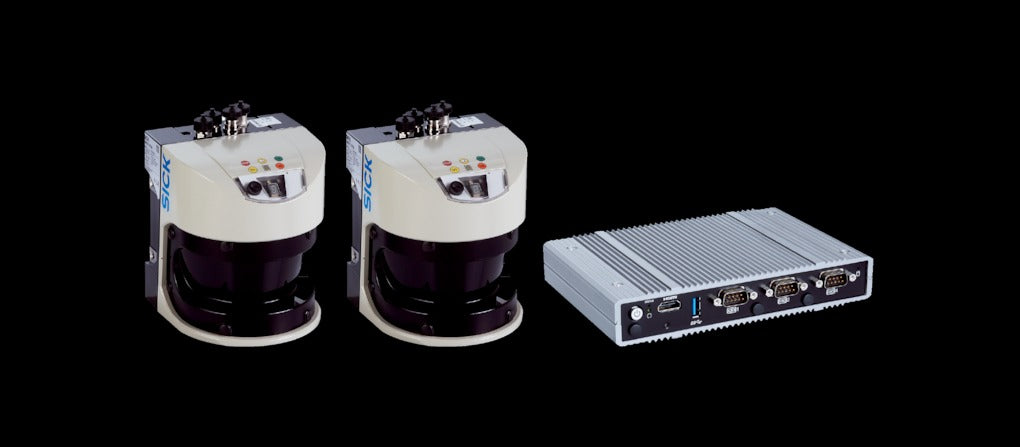

SICK Profiling systems: Free Flow Profiler FPS502

SAS00005484

Application
  • Measurement of vehicles and objects in motion
  • Verification of compliance with vehicle dimension regulations
  • Optimization of the loading process for ferries and car trains (RoLa)
  • Basis for a size-based toll or payment system
Number of covered lanes Up to 4 lanes at best performance
Max. number of sensors per system Max. 9 sensors per system
Scanner design 2-scanner solution
Vehicle data
  • Vehicle dimensions (length, width, height)
  • Vehicle classes
  • Driving direction
  • Lane assignment
  • Confidence level for all vehicle data
  • 3D point cloud
Sensor 2D LiDAR sensor
Classification system Europe, Asia, North America
Amount of vehicle classes Up to 30 classes
Recommended distance between max. vehicle height and sensor ≥ 1 m
Recommended vehicle distance
  • 0.6 m at v < 30 km/h
  • 2.2 m at v < 120 km/h
Calibration Automatic
Stop-and-go functionality Yes
Scanning frequency
  • 75 Hz, for LMS Width
  • 35 Hz, for LMS Length
Max. range with 10 % reflectivity 40 m
Aperture angle 190°, per LMS511 SE
Laser class 1, eye-safe (IEC 60825-1:2014)
Heating ✔
Internal computer Traffic Controller FPS ✔
Internal memory 32 GB
Application
  • Vehicle measurement
  • Toll systems
  • Verification of compliance with vehicle dimension regulations
  • Optimization of the loading process
