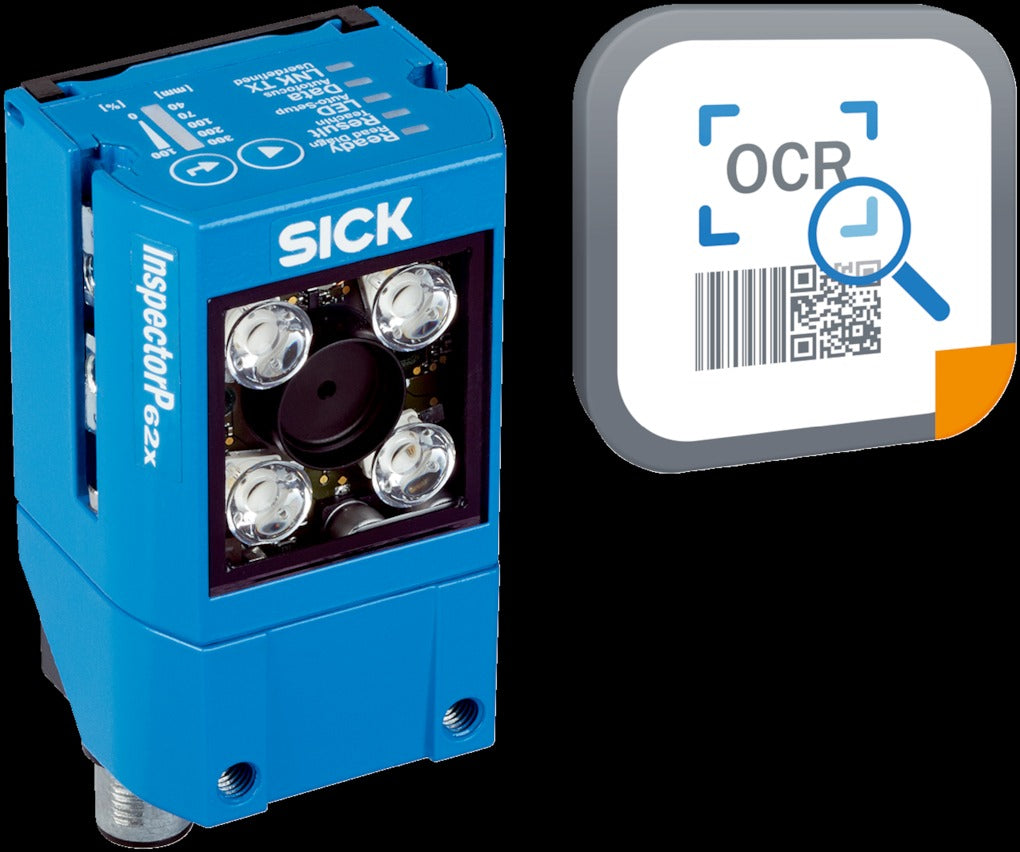

SICK Quality control systems: Label Checker LBC621-17RB

SAS00005544

Technology 2D snapshot
Light source
  • Internal lighting: LED, visible red light, 617 nm, ± 15 nm
  • Internal lighting: LED, visible blue light, 470 nm, ± 15 nm
  • Feedback spot: LED, visible green light, 525 nm, ± 15 nm
  • Adjustment aid: Laser, visible red light, 630 nm ... 680 nm
Laser class 1, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014)
Focus Adjustable focus (electric)
Sensor CMOS matrix sensor, grayscale values, 1.3 Mpixel, 1,280 px, 1,024 px
Spectral range Approx. 400 nm ... 900 nm
Focal length 17.1 mm
