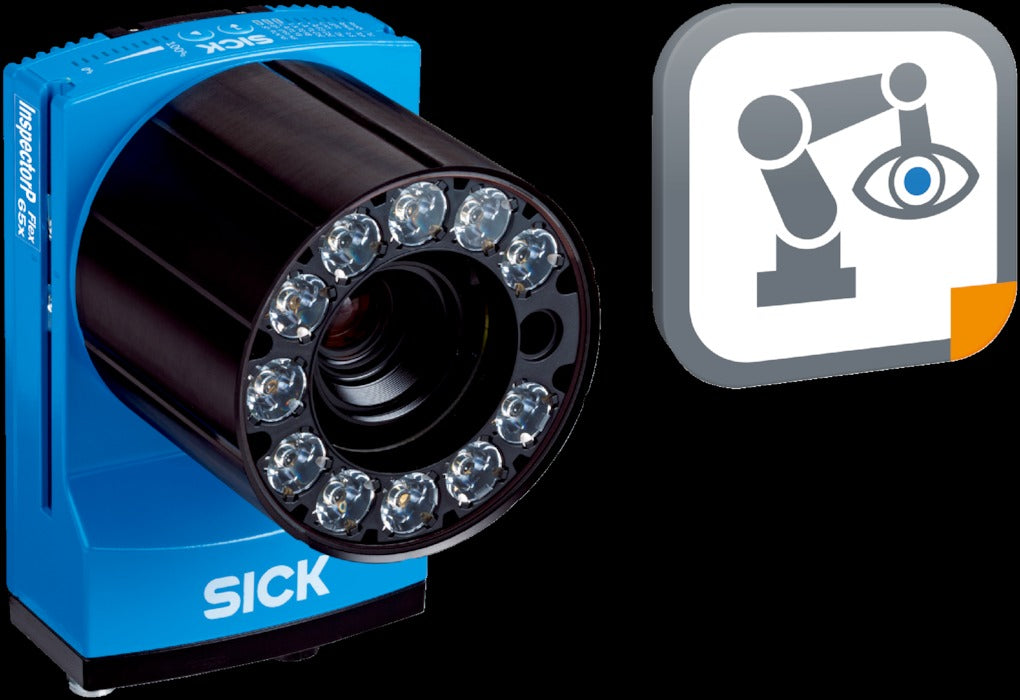

SICK Robot guidance systems: PLOC2D PLOC2D-2000

SAS00005371

Applications
  • Robot guidance
  • Positioning
  • Identifying
System features Stand-alone sensor with easy teach, for localization of parts using 2D measurements
Example field of view 2000 mm x 2000 mm
Working range 3 m
Light source VI83I-BU1441M0 ring light, blue, medium, Laser alignment aid: visible red light (λ = 630 nm ... 680 nm)
Laser class 1, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014)
LED class Risk group 1 (low risk, IEC 62471 (2006-07) / EN 62471 (2008-09))
Localization principle Shape comparison
Sensor resolution 2,048 px x 2,048 px (4.2 Mpixel)
Lens C-mount
Optical format 1″
Technology 2D snapshot, image analysis
Description High resolution 2D localization of parts, with device factory calibrated for field of view 2000 x 2000 mm at approximately 3 m reading distance
