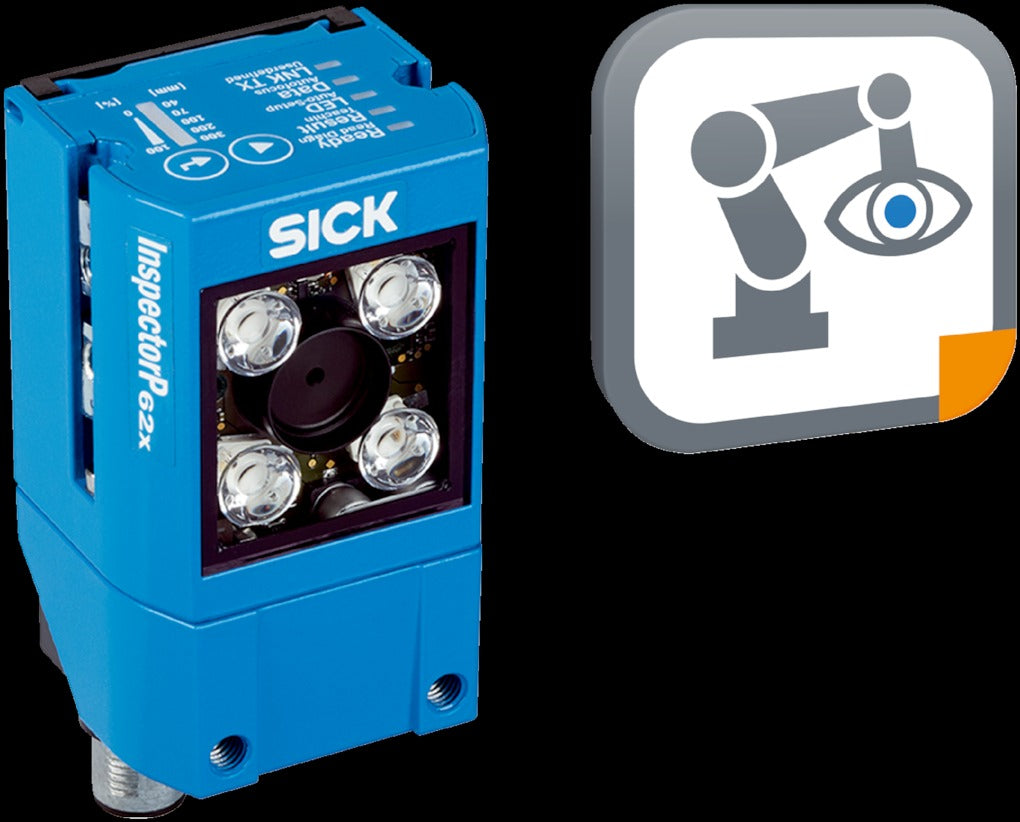

SICK Robot guidance systems: PLOC2D PLOC2D-621-17NIR

SAS00005578

Applications
  • Robot guidance
  • Positioning
  • Identifying
System features Stand-alone sensor with easy teach, for localization of parts using 2D measurements
Example field of view For details see field of view diagram
Working range 300 mm ... 1,500 mm
Light source
  • Internal lighting: LED, infrared, 850 nm, ± 25 nm
  • Adjustment aid: Laser, visible red light, 630 nm ... 680 nm
  • Feedback spot: LED, visible green light, 525 nm, ± 15 nm
Laser class 1, complies with 21 CFR 1040.10 except for the conformance according to “Laser Notice No. 50” from June 24, 2007 (IEC 60825-1:2014, EN 60825-1:2014)
LED class Risk group 1 (low risk, IEC 62471 (2006-07) / EN 62471 (2008-09))
Localization principle Shape comparison
Sensor resolution 1,280 px x 1,024 px (1.3 Mpixel)
Lens
  • Focal length: 17.1 mm
Technology 2D snapshot, image analysis
Description Basic resolution 2D localization of parts in medium fields of view at medium reading distances
