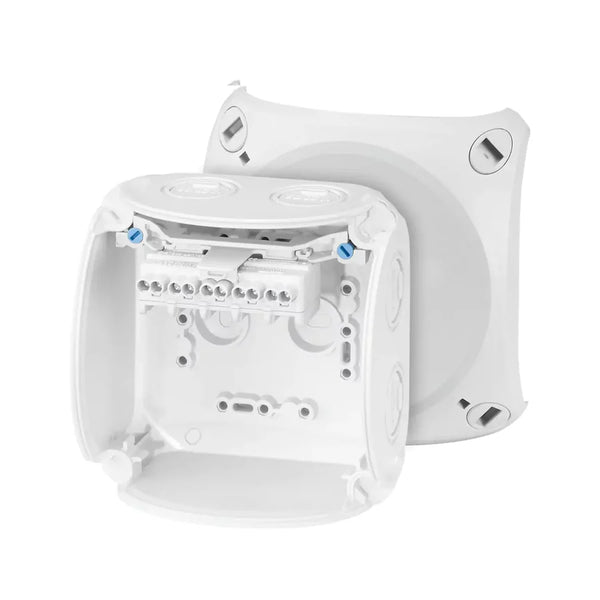

HENSEL KF 0402 G | Cable Junction Box

Write a review
Rs. 958.16

Technical Data

Rated Insulation Voltage Ui = 690 V A.C./D.C.
Rated Current 20 A
Material PC-GFS (polycarbonate)
Degree of Protection IP 66 / IP 67 / IP 69
IP 67 Temporary submersion
IP 69 Water pressure max. 100 bar, water temperature max. 80 °C, distance ≥ 0.15 m
Width 104 mm
Height 104 mm
Depth 70 mm
Weight 0.164 kg
Tightening Torque for Terminal 0.5 Nm
In Accordance with IEC 60670-22
In Accordance with DNV GL - Certificate No: TAE00000EE
