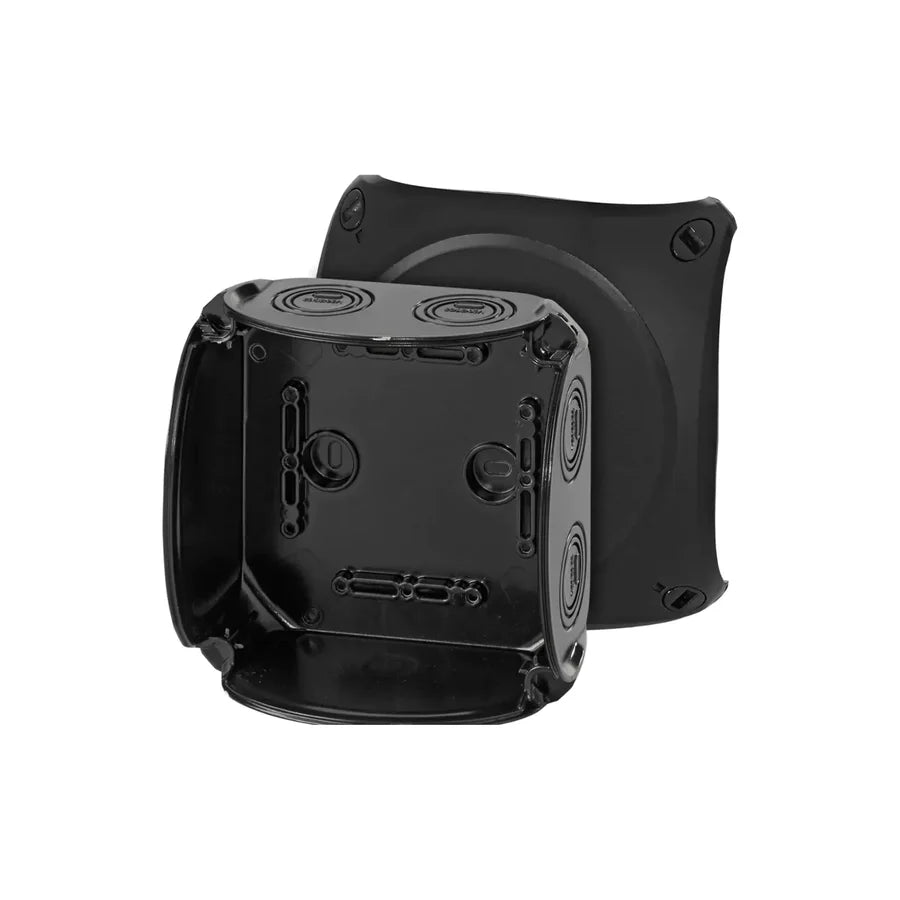

HENSEL KF 0600 B | CABLE JUNCTION BOX IP 66/67/69

AMB00001654

Rated Insulation Voltage Ui = 1000 V A.C./D.C.
Material PC-GFS (polycarbonate)
Degree of Protection IP 66 / IP 67 / IP 69
IP 67 Temporary submersion
IP 69 Water pressure max. 100 bar, water temperature max. 80 °C, distance ≥ 0.15 m
Mounting Width 102 mm
Mounting Height 102 mm
Max. Installation Depth 62 mm
Width 130 mm
Height 130 mm
Depth 77 mm
Weight 0.187 kg
Compliance IEC 60670-22, DNV GL - Certificate No: TAE00000EE
