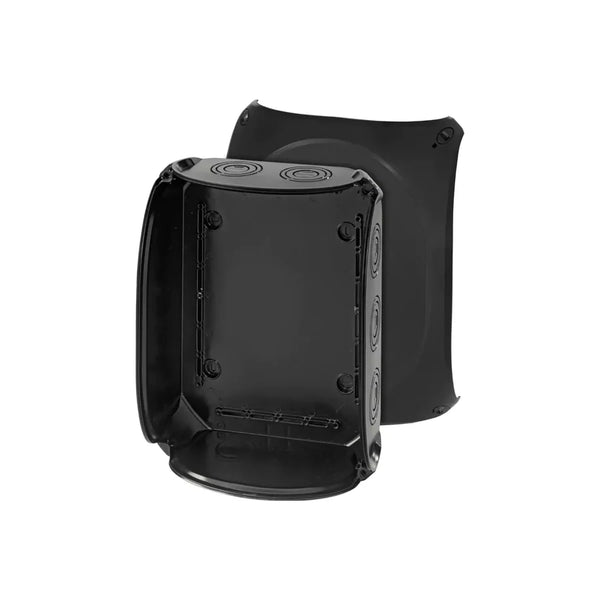

HENSEL KF 3500 B | Cable Junction Box IP 66/67/69

Write a review
Rs. 3,587.20

Wall Thickness (Bottom Part) 3.0 mm
Rated Insulation Voltage Ui = 1000 V A.C./D.C.
Material PC-GFS (polycarbonate)
Degree of Protection IP 66 / IP 67 / IP 69
IP 67 Temporary submersion
IP 69 Water pressure max. 100 bar, water temperature max. 80Ā°C, distance ā‰„ 0.15 m
Mounting Width 260 mm
Mounting Height 190 mm
Max. Installation Depth 106 mm
Dimensions (W x H x D) 295 mm x 225 mm x 122 mm
Weight 1.04 kg
Compliance IEC 60670-22, DNV GL - Certificate No: TAE00000EE
