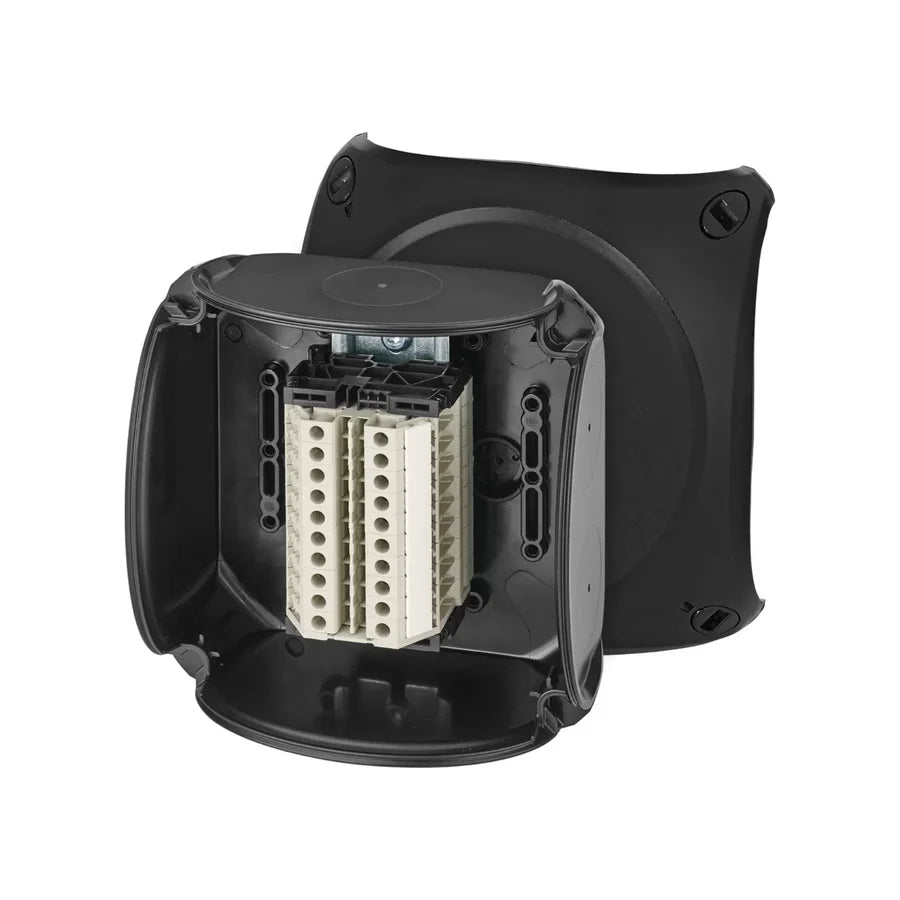

HENSEL RX 0610 T | Cable Junction Boxes IP 66

AMB00001665

Rated Insulation Voltage Ui = 690 V A.C./D.C.
Rated Current 12.3 A (6 mm²)
10.6 A (4 mm²)
9 A (2.5 mm²)
Tightening Torque for Terminal 0.5 Nm
Weight 0,313 kg
Degree of Protection IP 66
Material PC (Polycarbonate)
Dimensions (W x H x D) 130 mm x 130 mm x 77 mm
Standards Compliance IEC 60670-22
DIN EN IEC 60079-1
DIN EN IEC 60079-7
DIN EN 60079-31
Explosion Protection Code II 3G Ex ec IIC T6 Gc
II 3D Ex tc IIIC T85 Dc
